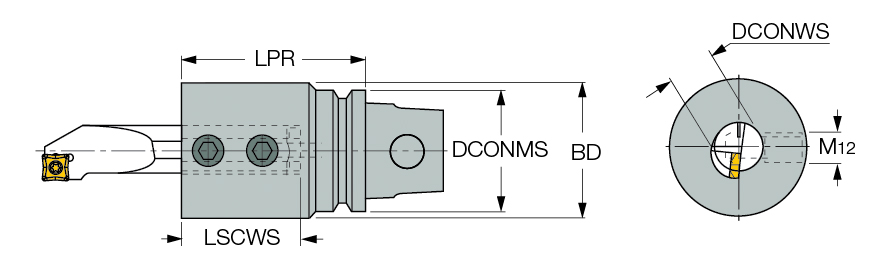

‎IM50 ADI-20

Item # EH4500480

Brand: Iscar

MFG #: 4500480

Legacy Part #: EH4500480

Overall Length (OAL)

2.3″

Nose Diameter

3/4″

Shank Size Machine Side

3/4″

Measurement Type

Metric

Body Material

Weldon

Holder Length

76mm

Tool Type

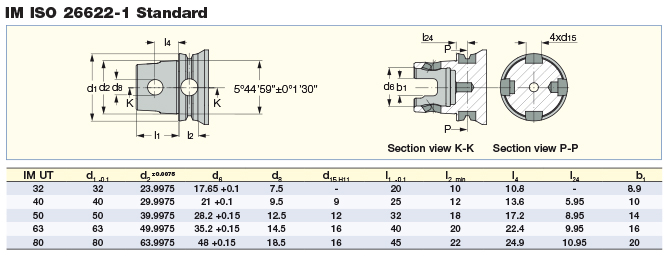

‎ISO 26622-1 (KM, IM)

Grade

4500480

Product Features

Family Description

‎Holders for boring-bars with ISO 26622-1 tapered shank.

Country of Origin

Israel

Remarks

Tools with orientation holes in the flange groove can be supplied on request

Package Weight

2.6460
