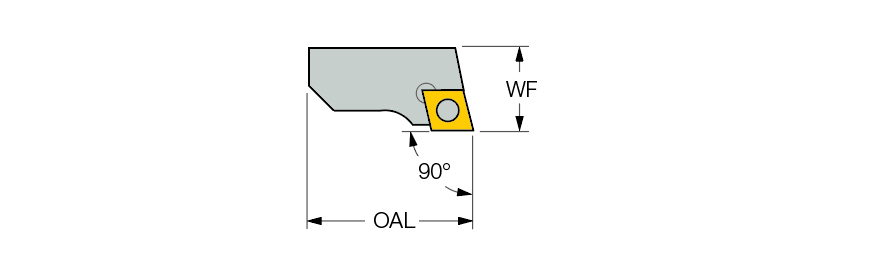

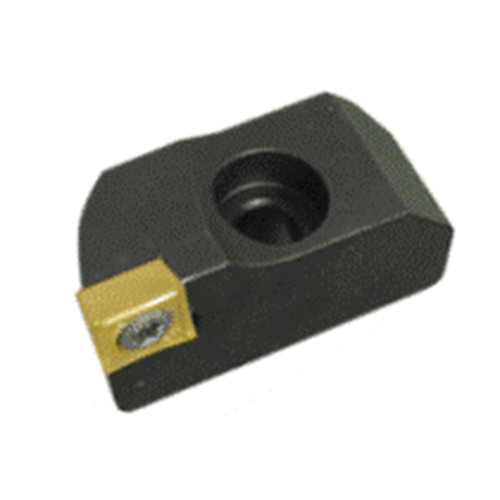

IHCR 120-160
| Overall Length (OAL) | 3.72″ | Tool Type | Indexble Boring heads |
| Connection Diameter Minimum Workpiece Side (DCONNWS) | 4.724″ | Nose Diameter | 3/4″ |
| Connection Diameter Maximum Workpiece Side (DCONXWS) | 6.299″ | Cutting Diameter Minimum (DCN) | 4.724″ |
| Cutting Diameter Maximum (DCX) | 6.299″ | d_max | 6.299″ |
| Shank Size Machine Side | 3/4″ | Internal/External | Internal |
| Master Insert Identification (MIID) | CCMT 43... | Measurement Type | Inch |
| Body Material | Steel | Grade | 4550318 |
| Application | | Int. 80° Diamond 90° Approach | |
Product Features
| Family Description | Boring toolholders for MB modular boring system. | Country of Origin | Italy |
Shipping Info
Package Weight
0.002
