IHPR 160-800

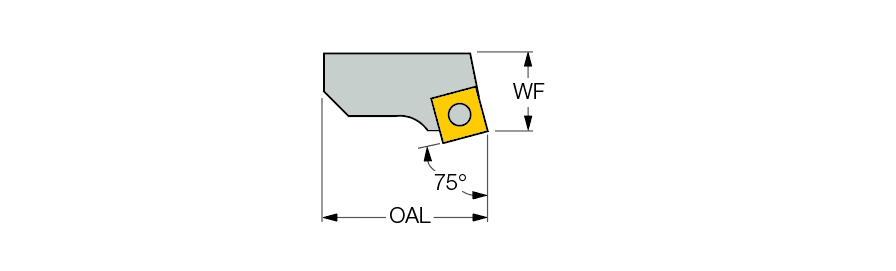

| Overall Length (OAL) | 5.118″ | Tool Type | Indexble Boring heads |
| Connection Diameter Minimum Workpiece Side (DCONNWS) | 6.299″ | Nose Diameter | 3/4″ |
| Connection Diameter Maximum Workpiece Side (DCONXWS) | 31.496″ | Cutting Diameter Minimum (DCN) | 6.299″ |
| Cutting Diameter Maximum (DCX) | 31.496″ | d_max | 31.496″ |
| Shank Size Machine Side | 3/4″ | Internal/External | Internal |
| Master Insert Identification (MIID) | SCMT 43... | Measurement Type | Inch |
| Body Material | Steel | Grade | 4550328 |
| Application | | Int. 90° Square 75° Approach | |
Product Features

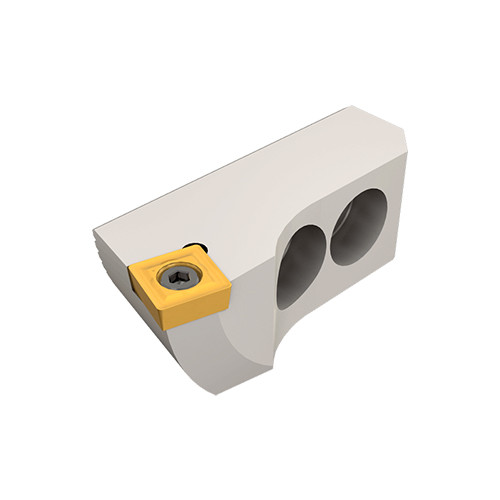

| Family Description | 75° rough boring toolholders used on the MB modular boring system. | Country of Origin | Italy |
Shipping Info
Package Weight
1.971
