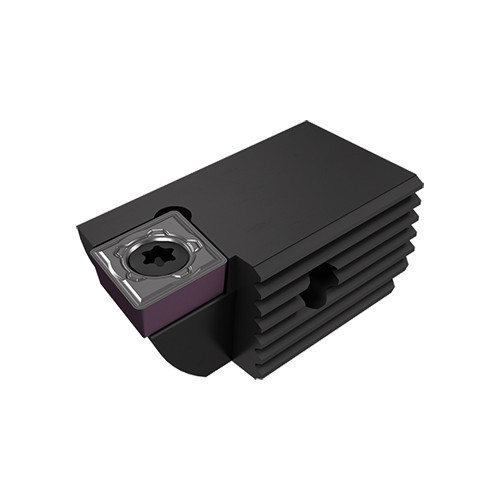

IHSR 69-92 BW
| Overall Length (OAL) | 2.244″ | Body Material | Steel |
| Body Diameter (BD) | 2.559″ | Application | | Int. Back Turning 80° Diamond | |
| Connection Diameter Minimum Workpiece Side (DCONNWS) | 2.717″ | Tool Type | Indexble Boring heads |
| Connection Diameter Maximum Workpiece Side (DCONXWS) | 3.622″ | Nose Diameter | 3/4″ |
| Shank Size (SS) | BHR MB50-50 | Cutting Diameter Minimum (DCN) | 2.717″ |
| Cutting Diameter Maximum (DCX) | 3.622″ | Internal/External | Internal |
| Shank Size Machine Side | 3/4″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | CCMT 43.. | Grade | 4551100 |
Product Features
| Family Description | Back face turning tools for BHR rough boring heads. | Country of Origin | Italy |

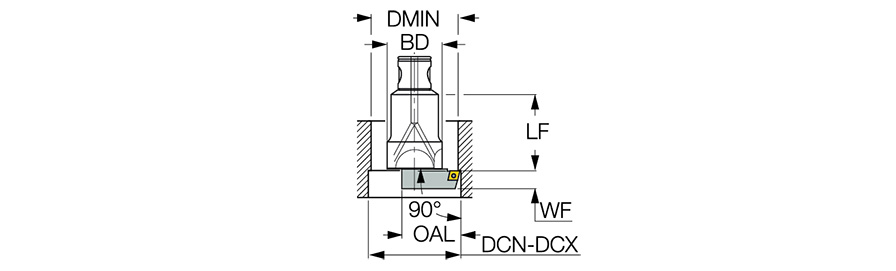

| Remarks | DMIN=(min bore diameter)=(DCN+BD+1)/2 BD=Size of the boring head being used |
Shipping Info
Package Weight
0.423
