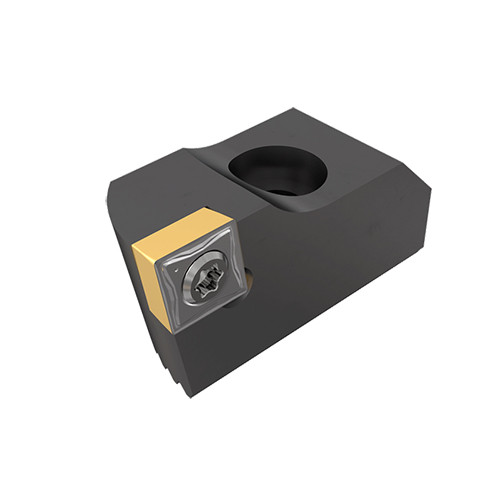

IHSR 36-50-09

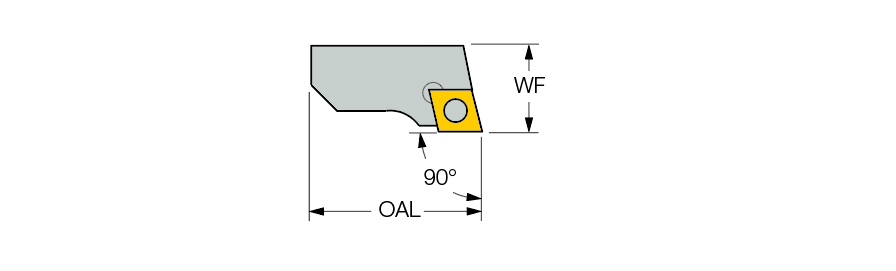

| Overall Length (OAL) | 1.26″ | Tool Type | Indexble Boring heads |
| Connection Diameter Minimum Workpiece Side (DCONNWS) | 1.398″ | Nose Diameter | 3/4″ |
| Connection Diameter Maximum Workpiece Side (DCONXWS) | 1.968″ | Cutting Diameter Minimum (DCN) | 1.398″ |
| Cutting Diameter Maximum (DCX) | 1.968″ | d_max | 1.968″ |
| Shank Size Machine Side | 3/4″ | Internal/External | Internal |
| Master Insert Identification (MIID) | CCMT 3... | Measurement Type | Inch |
| Body Material | Steel | Grade | 4551000 |
| Application | | Int. 80° Diamond 90° Approach | |
Product Features
| Family Description | Rough boring tools for twin cutter configuration. Radial and axial edge positioned on the inner side of the opposite finishing tool of the MB modular boring system. | Country of Origin | Italy |
Shipping Info
Package Weight
0.002
