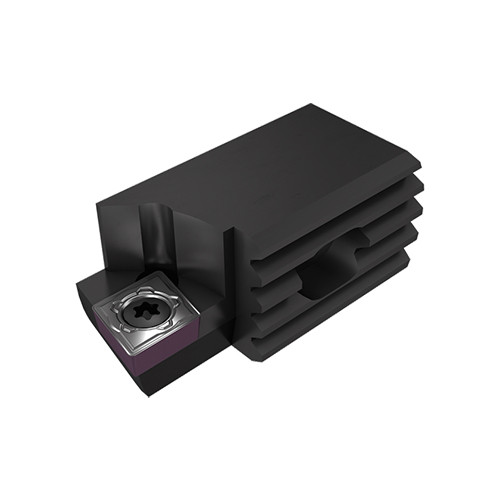

IHRF 56-802BW
| Overall Length (OAL) | 2.087″ | Body Material | Steel |
| Body Diameter (BD) | 1.968″ | Application | | Int. Back Turning 80° Diamond | |
| Connection Diameter Minimum Workpiece Side (DCONNWS) | 2.205″ | Tool Type | Indexble Boring heads |
| Connection Diameter Maximum Workpiece Side (DCONXWS) | 31.575″ | Nose Diameter | 3/4″ |
| Body Length (LB) | 2.441″ | Cutting Diameter Minimum (DCN) | 2.205″ |
| Shank Size (SS) | MB50 | Internal/External | Internal |
| Cutting Diameter Maximum (DCX) | 31.575″ | Measurement Type | Inch |
| Shank Size Machine Side | 3/4″ | Grade | 4551109 |
| Master Insert Identification (MIID) | CCMT 3... |
Product Features
| Family Description | Back face turning toolholders for BHF fine boring heads. | Country of Origin | Italy |

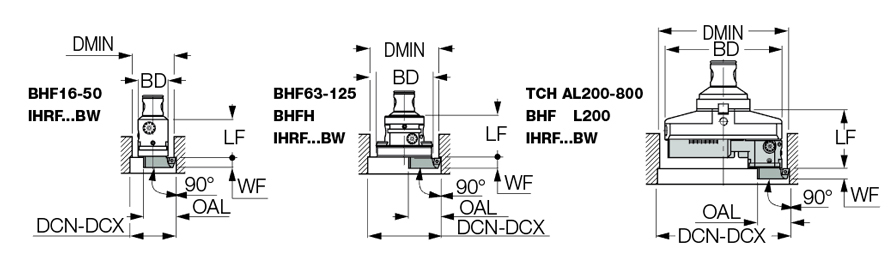

| Remarks | DMIN=(min bore diameter)=(DC+BD+.040)/2 DC=Cut diameter BD=Size of the boring head being used |
Shipping Info
Package Weight
0.273
