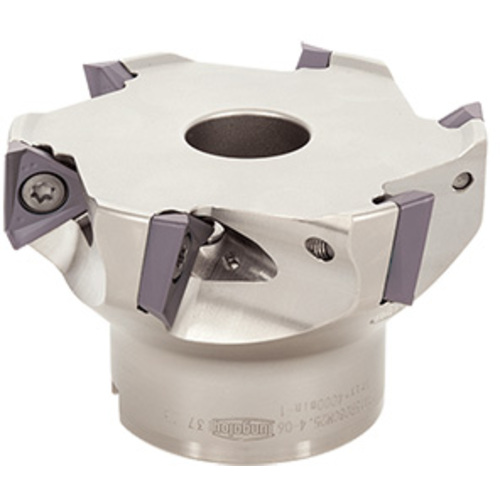

TPA15R400U0150A07NLF2.5
Indexable Face Mill; 4″ Dia. × 1-1/2″ Shank Dia. × 2.48″ OAL × 0.59″ LOC ; 7 Inserts

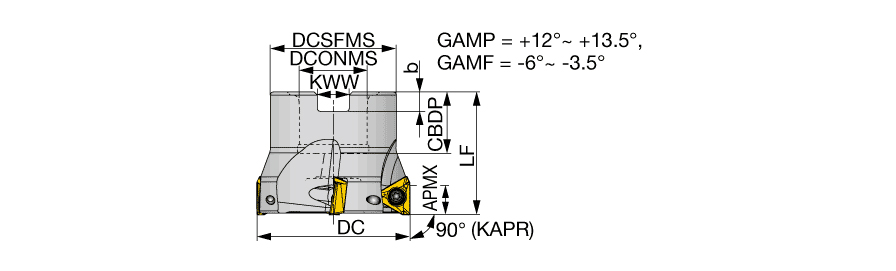

| Cutting Diameter (DC/DCX) | 4″ | Master Insert Identification (MIID) | TOMT150608PDER-MJ |
| Cutting Diameter (DC) | 4″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 4″ | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 7 | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 0.59″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Functional Length (LF) | 2.48″ |
| Overall Length (OAL) | 2.48″ | Tool Type | CUTTER - BORE TYPE |
Product Features
| Family Description | High precision shoulder square mills with triangular inserts | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.000
