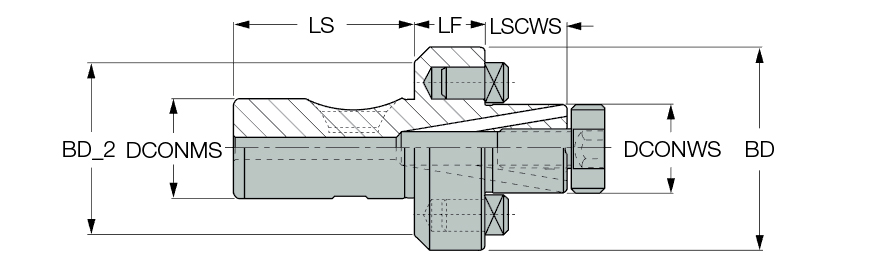

SEM 22 CF4 C
Holder ; 22 mm Hole Dia. ; 25 mm Shank Dia. ; CF4 Shank Size ; 16 mm LPR ; 77 mm OAL
| Protruding Length (LPR) | 16 mm | Body Diameter (BD) | 47 mm |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Workpiece Side (DCONWS) | 22 mm | Body Material | Steel |
| Overall Length (OAL) | 77 mm | Measurement Type | Metric |
| Shank Size (SS) | CF4 | Tool Type | Quick Change Milling Adaptation |
| Shank Length (LS) | 19 mm |
Product Features
| Family Description | DIN 3937 shell mill holder with a CLICKFIT quick change adaptation and coolant holes. | Country of Origin | Israel |
| Remarks | Tightening torque: 6 Kgxm. For adaptation click on More Info. For internal coolant through the holder, the related COOLANT SET should be ordered via Accessories (applicable to certain tools only) |
Shipping Info
Package Weight
1.063
