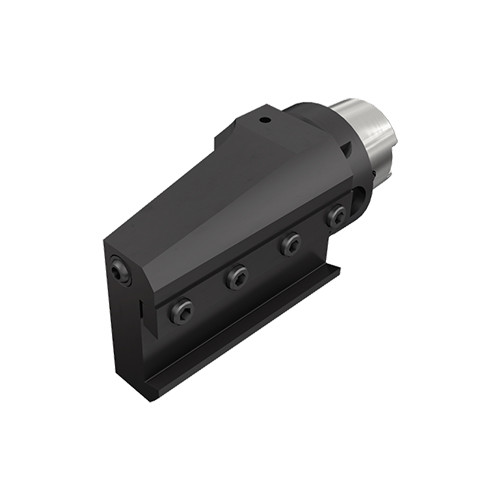

HSK A63WH TBK 32R
Holder ; 2.48″ Shank Dia. ; 63 Shank Size ; 5.433″ LPR ; 6.693″ OAL

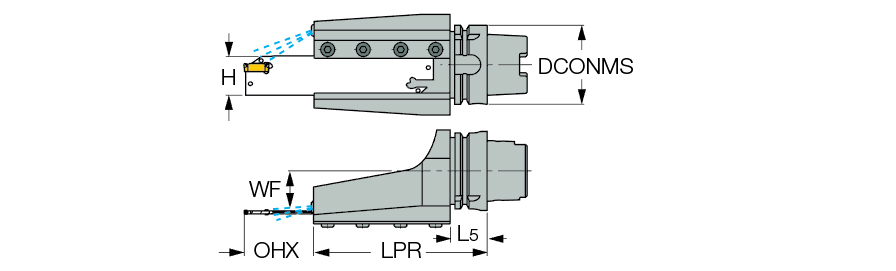

| Protruding Length (LPR) | 5.433″ | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Body Material | Steel |
| Overall Length (OAL) | 6.693″ | Measurement Type | Inch |
| Shank Size (SS) | 63 | Tool Type | HSK -T (ISO 12164-3) |
| Shank Height (H) | 1.26″ |
Product Features
| Family Description | Blocks with HSK exchangeable tapered shanks for parting and grooving blades. | Country of Origin | Italy |
| Remarks | Complies with ICTM standard (ISO 12164-3) Not suitable for ATC for some Multi-Tasking Machine models, please consult your MTB A cooling tube must be used with all coolant through HSK spindles (should be ordered separately) For shank dimensions, click on More Info |
Shipping Info
Package Weight
6.817
