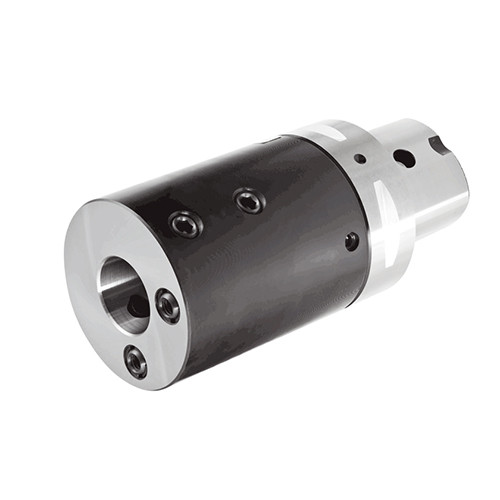

C6 ABB-40-70
Holder ; 40 mm Hole Dia. ; 63 mm Shank Dia. ; 63 Shank Size ; 105 mm LPR ; 143 mm OAL

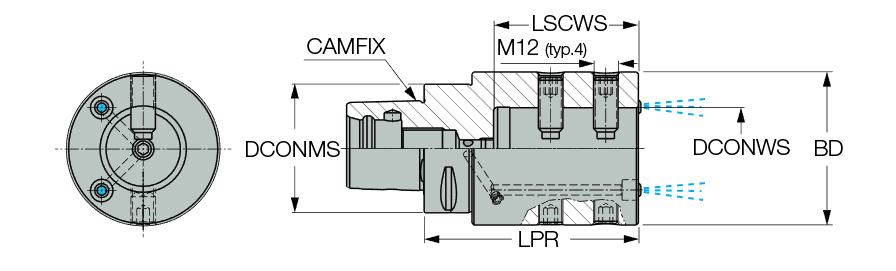

| Protruding Length (LPR) | 105 mm | Body Diameter (BD) | 75 mm |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Workpiece Side (DCONWS) | 40 mm | Body Material | Steel |
| Overall Length (OAL) | 143 mm | Measurement Type | Metric |
| Shank Size (SS) | 63 | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
Product Features
| Family Description | Adapters with CAMFIX (ISO 26623-1 standard) exchangeable shanks for boring bars with reduction sleeves. | Country of Origin | Israel |
Shipping Info
Package Weight
6.493
