| Applicable Material | | Aluminum / Non-Ferrous Materials | | Coating | Uncoated |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Grade | IC28 |

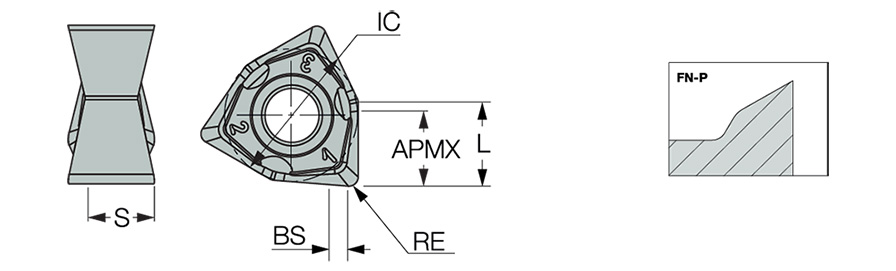

| Insert Length (INSL) | 0.287″ | Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Corner Radius (RE) | 0.0315″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.276″ | Tool Type | Double sided Inserts |
| Inscribed Circle Diameter (IC) | 0.453″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Thickness (S) | 0.23″ | Number of Cutting Edges | 6 |
| Wiper Edge Length (BS) | 0.031″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 85.5 Degrees | Body Material | Carbide |
Product Features
| Family Description | Inserts with sharp cutting edge and polished rake face for ISO N applications (for machining non-ferrous materials) | Country of Origin | Israel |
Shipping Info
Package Weight
8.4
