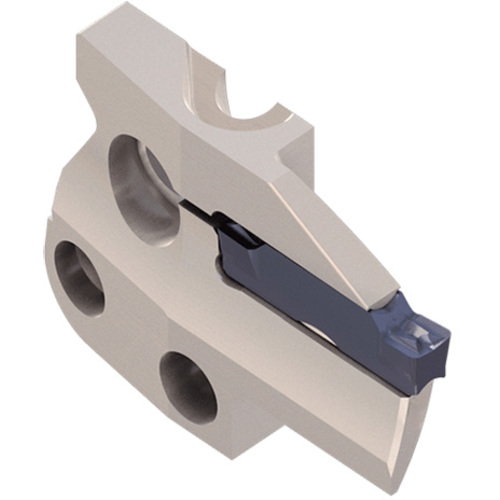

CAFR-6T25-150250-MD
Grooving Toolholder ; 1.299″ Shank Height ; 0.402″ Shank Width ; 0.217″ CW Min. ; 0.256″ CW Max. ; 0.984″ Max Depth ; Right Hand ; Steel

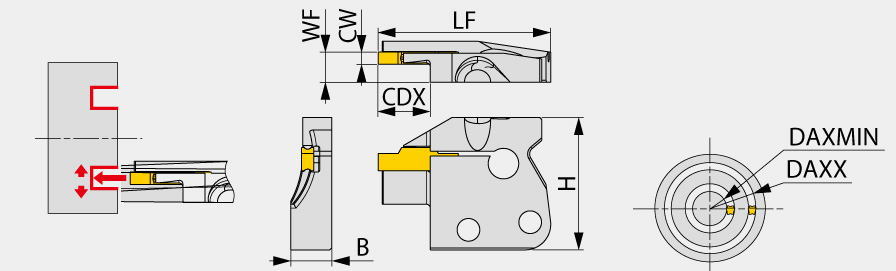

| Cutting Width Minimum (CWN) | 0.217″ | Functional Length (LF) | 2.047″ |
| Cutting Width Maximum (CWX) | 0.256″ | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 0.984″ | Application | | Face grooving | |
| Shank Height (H) | 1.299″ | Body Material | Steel |
| Shank Width (B) | 0.402″ | Tool Type | Face Turning & grooving Tools |
| Functional Width (WF) | 0.354″ | Measurement Type | Inch |
Product Features
| Family Description | Face grooving and turning adapter | Country of Origin | Japan |
| Remarks | Use the right hand insert for the right hand holder with DTF insert, and the left hand insert for the left hand holder with DTF insert. |
