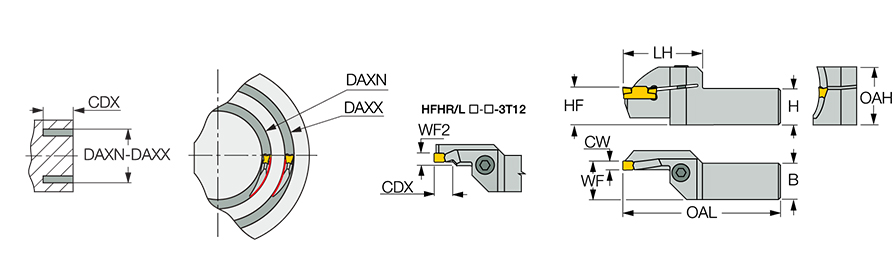

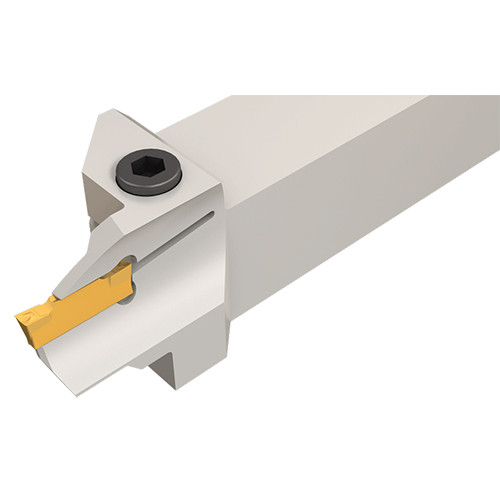

HFHR 25-60-3T22
| Shank Width (B) | 25 mm | Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | |
| Shank Height (H) | 25 mm | Head Length (LH) | 40 mm |
| Cutting Depth Maximum (CDX) | 22 mm | Tool Type | Face Turning & grooving Tools |
| Cutting Width (CW) | 3 mm | Shank Standard | SQ |
| Cutting Direction (HAND) | Right Hand | Body Material | Steel |
| Axial Groove Outside Diameter Maximum (DAXX) | 75 mm | Functional Width (WF) | 25.5 mm |
| Axial Groove Outside Diameter Minimum (DAXN) | 60 mm | Measurement Type | Metric |
| Overall Length (OAL) | 150 mm |
Product Features
| Family Description | Integral holders for facing | Country of Origin | Israel |

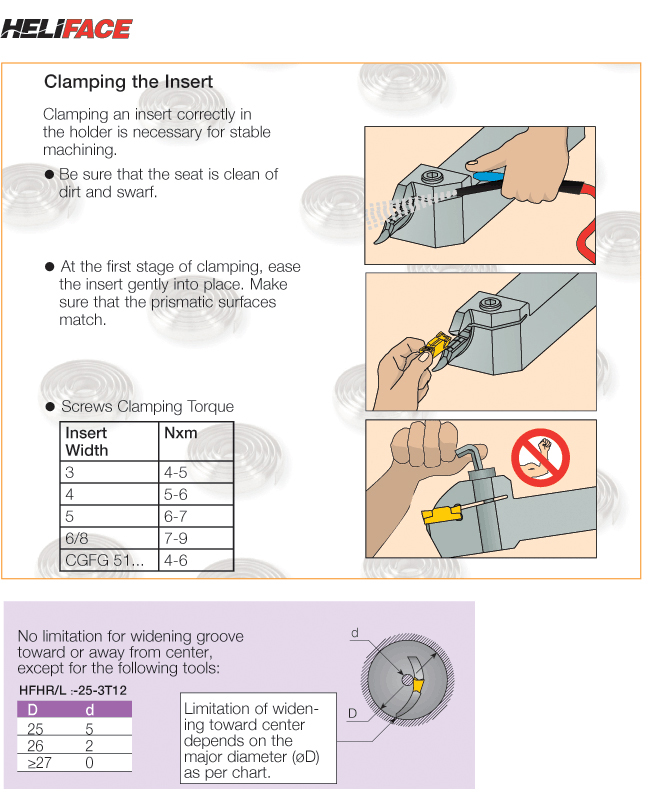

| Remarks | For insert clamping instructions, click on More Info |
Shipping Info
Package Weight
1.576
Related Documentation
No limitation for widening groove outward/toward center, except for the tools above.
