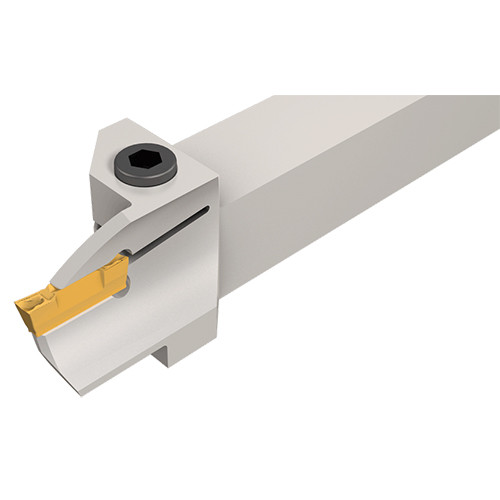

HFHL 20-25-4T12

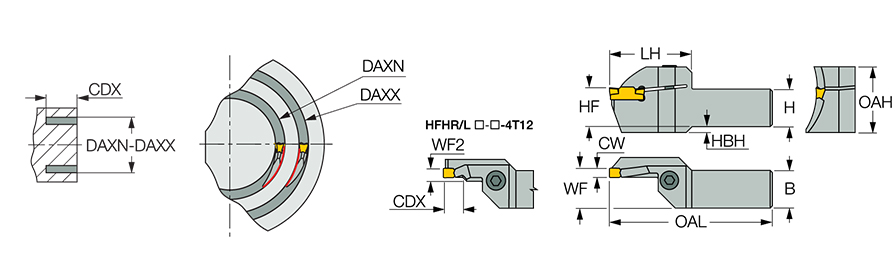

| Shank Width (B) | 20 mm | Overall Length (OAL) | 140 mm |
| Shank Height (H) | 20 mm | Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | |
| Cutting Depth Maximum (CDX) | 12 mm | Head Length (LH) | 39 mm |
| Cutting Width (CW) | 4 mm | Tool Type | Face Turning & grooving Tools |
| Cutting Width Maximum (CWX) | 0 mm | Shank Standard | SQ |
| Cutting Width Minimum (CWN) | 0 mm | Body Material | Steel |
| Cutting Direction (HAND) | Left Hand | Functional Width (WF) | 20.6 mm |
| Axial Groove Outside Diameter Maximum (DAXX) | 29 mm | Measurement Type | Metric |
| Axial Groove Outside Diameter Minimum (DAXN) | 25 mm |
Product Features
| Family Description | Integral holders for facing | Country of Origin | Israel |

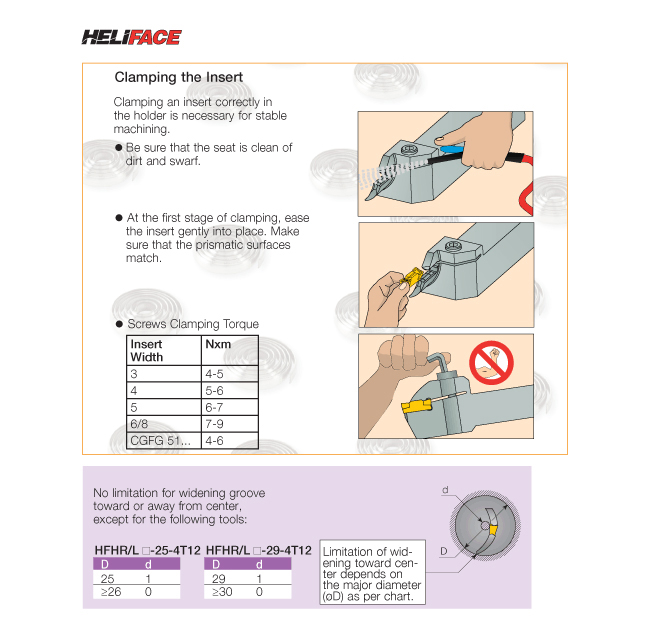

| Remarks | For insert clamping instructions, click on More Info |
Shipping Info
Package Weight
0.992
Related Documentation
No limitation for widening groove outward/toward center, except for the tools above. The inserts DGN 4003 and GRIP 4004Y can be used with right-hand toolholder only.
