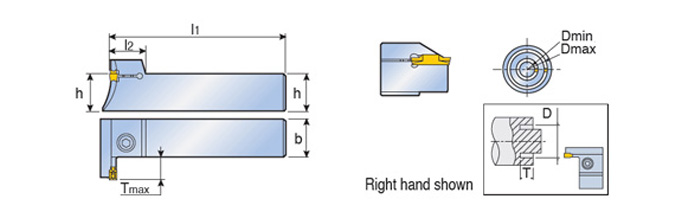

TTFPL 25-30-4
| Shank Width (B) | 25 mm | Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Int. Face Grooving | Int. Face Recessing | Int. Groove & Turn | Int. Grooving | Int. Profiling | Int. Undercut & Turning | Threading (Int.) | |
| Shank Height (H) | 25 mm | Head Length (LH) | 18.5 mm |
| Cutting Depth Maximum (CDX) | 12 mm | Tool Type | Indexable Turn & Groov Tools |
| Cutting Width Maximum (CWX) | 22 mm | Body Material | Steel |
| Overall Length (OAL) | 150 mm | Functional Width (WF) | 7.5 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Measurement Type | Metric |
| Work Piece Parting Diameter Maximum (CUTDIA) | 40 mm |
Product Features
| Family Description | Deep Face Grooving and Turning Perpendicular Holders aginst Center | Country of Origin | S.Korea |
Shipping Info
Package Weight
1.807
