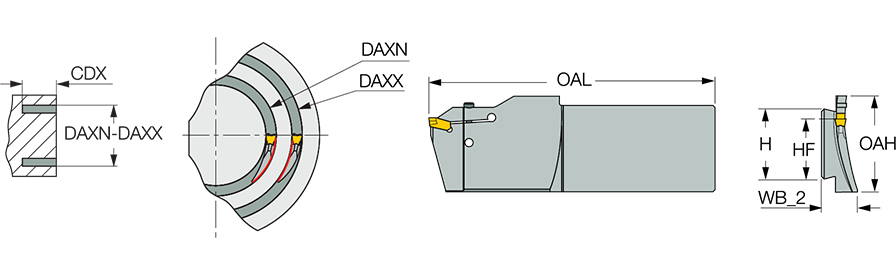

| Shank Height (H) | 2.071″ | Overall Length (OAL) | 9.843″ |
| Cutting Depth Maximum (CDX) | 4.724″ | Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | |
| Cutting Width (CW) | 0.315″ | Tool Type | Face Turning & grooving Tools |
| Cutting Direction (HAND) | Right Hand | Body Material | Steel |
| Axial Groove Outside Diameter Maximum (DAXX) | 59.06″ | Measurement Type | Inch |
| Axial Groove Outside Diameter Minimum (DAXN) | 27.559″ |
Product Features

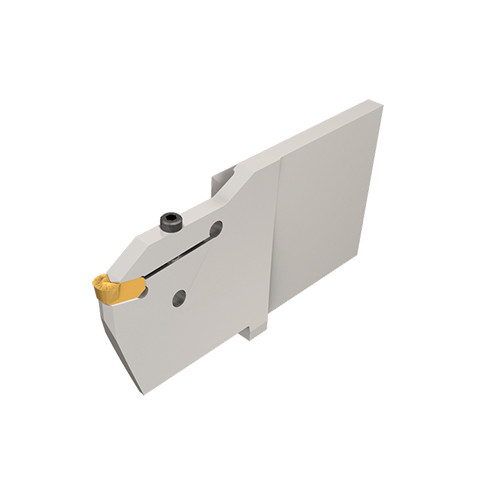

| Family Description | Blades for face machining carrying .315″ inserts, Dmin 7.09″ | Country of Origin | Israel |

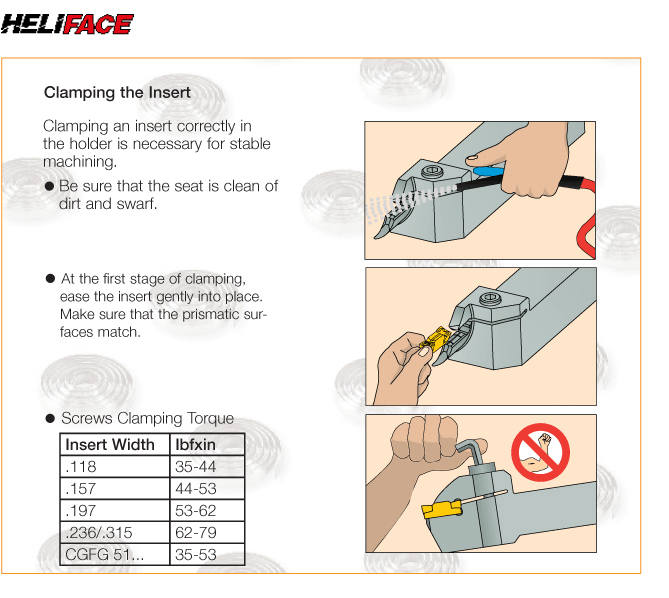

| Remarks | For insert clamping instructions, click on More Info |
Shipping Info
Package Weight
3.694
Related Documentation
No limitation to widening of groove, either way, after initial grooving.
