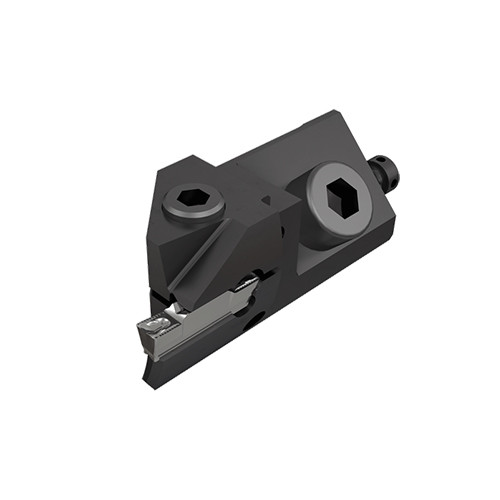

CR HFIR-20M

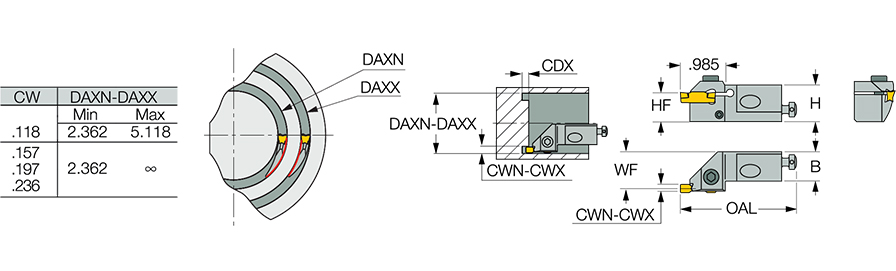

| Shank Width (B) | 0.787″ | Overall Length (OAL) | 2.835″ |
| Shank Height (H) | 0.945″ | Application | | Face Grooving | Face Grooving & Turning | Int. Face Grooving | Int. Face Recessing | |
| Cutting Depth Maximum (CDX) | 0.197″ | Tool Type | Face Turning & grooving Tools |
| Cutting Width (CW) | 0.157″ | Body Material | Steel |
| Cutting Width Maximum (CWX) | 0.236″ | Functional Width (WF) | 0.945″ |
| Cutting Width Minimum (CWN) | 0.118″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Cartridges for face grooving and face turning Dmin 2.36″ | Country of Origin | Israel |

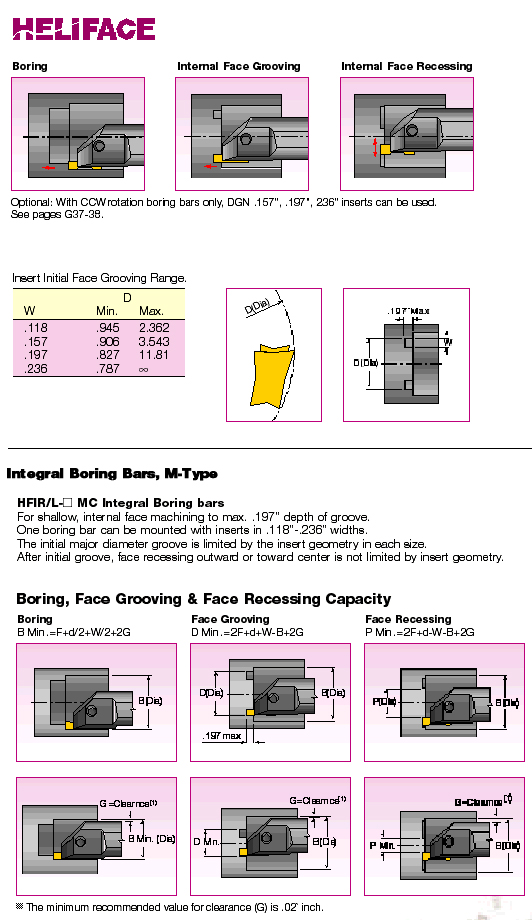

| Remarks | Used for shallow internal face machining to max. .197 depth of groove Inserts in .118 - .236 widths can be mounted on the cartridges Only DGN and GRIP .157 - .236 inserts can be used with the right-hand tools For insert clamping instructions, click on More Info |
Shipping Info
Package Weight
0.406
