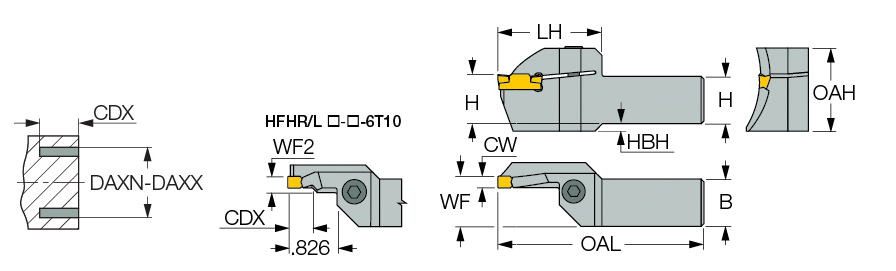

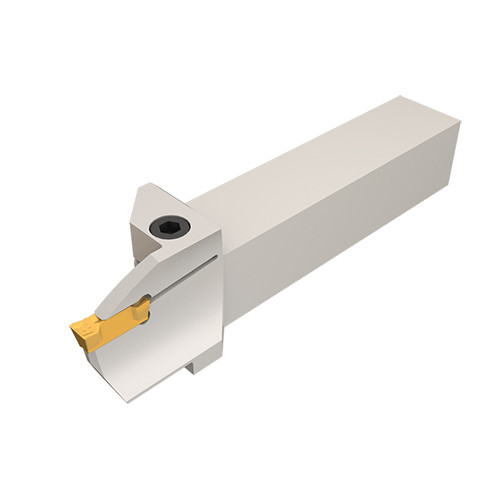

HFHR 25.4-100-6T20
| Shank Width (B) | 1″ | Axial Groove Outside Diameter Minimum (DAXN) | 3.94″ |
| Shank Height (H) | 1″ | Overall Length (OAL) | 6″ |
| Cutting Depth Maximum (CDX) | 0.79″ | Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | |
| Cutting Width (CW) | 0.236″ | Head Length (LH) | 2″ |
| Cutting Width Maximum (CWX) | 0.252″ | Tool Type | Face Turning & grooving Tools |
| Cutting Width Minimum (CWN) | 0.236″ | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Functional Width (WF) | 1.05″ |
| Axial Groove Outside Diameter Maximum (DAXX) | 7.09″ | Measurement Type | Inch |
Product Features
| Family Description | Integral toolholders for external facing | Country of Origin | Israel |
| Remarks | For insert clamping instructions, click on More Info |
Shipping Info
Package Weight
1.499
Related Documentation

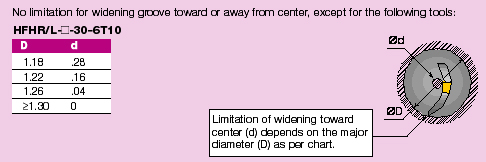

No limitation for widening groove outward/toward center, except for the tools above. The inserts DGN 6303 and GRIP 6005Y can be used with right-hand toolholder only.
