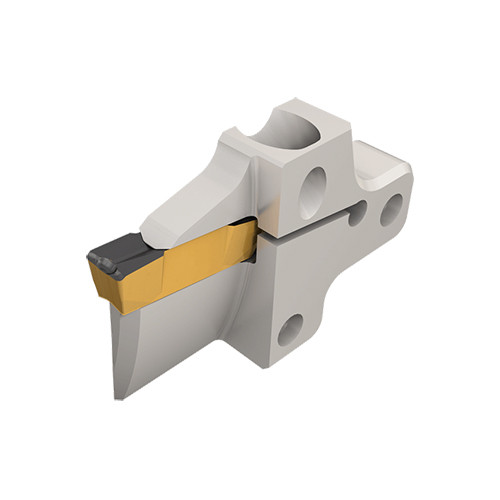

GAFG 105R-8

Name: GAFG 105R-8
Brand: CUTGRIP
SKU: EH2800565
Price: 321.00 USD
Availability: InStock

Item # EH2800565

Brand: Iscar

MFG #: 2800565

Alternate MFG #: 02800565

Legacy Part #: EH2800565

UPC #: 02800565 | 7291075054187

TradeName: CG FACE GROOVING TOOLS

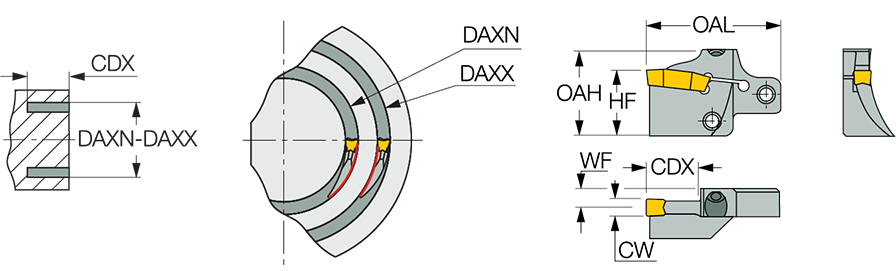

Cutting Depth Maximum (CDX)

0.984″

Application

| Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft |

Cutting Width (CW)

0.315″

Tool Type

Face Turning & grooving Tools

Cutting Direction (HAND)

Right Hand

Body Material

Steel

Axial Groove Outside Diameter Maximum (DAXX)

6.3″

Functional Width (WF)

0.354″

Axial Groove Outside Diameter Minimum (DAXN)

4.134″

Measurement Type

Inch

Overall Length (OAL)

‎2-1/2″

Product Features

Family Description

Adapters for face machining, Dmin 3.14″.

Country of Origin

Israel

Remarks

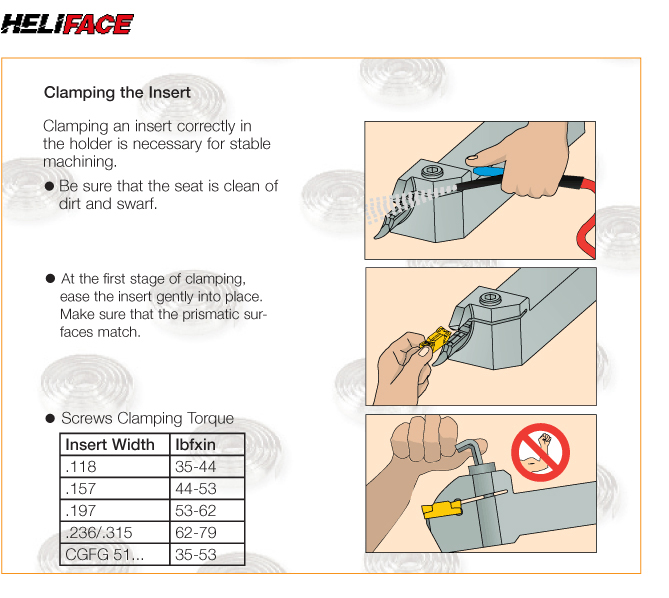

No limitation for widening the groove either way after initial grooving For user guide, click on More Info

Package Weight

0.306
