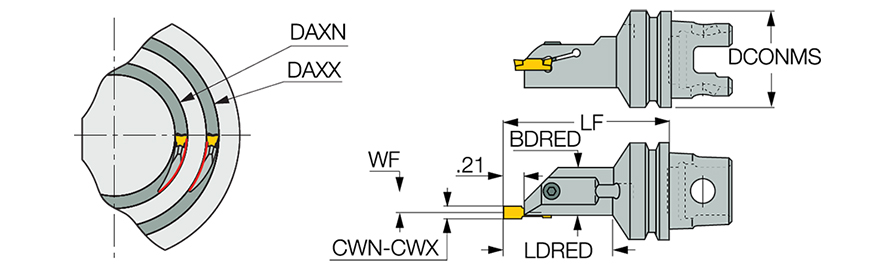

| Cutting Depth Maximum (CDX) | 0.209″ | Application | | Face Grooving | Face Grooving & Turning | Int. Face Grooving | Int. Face Recessing | |
| Cutting Width (CW) | 0.157″ | Tool Type | Face Turning & grooving Tools |
| Cutting Width Maximum (CWX) | 0.236″ | Shank Standard | IM |
| Cutting Width Minimum (CWN) | 0.118″ | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Functional Width (WF) | 0.445″ |
| Overall Length (OAL) | 4.409″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1.968″ |
Product Features

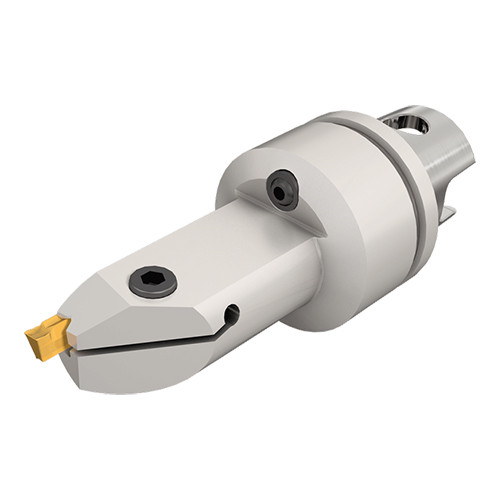

| Family Description | Tools for internal grooving and turning with ISO 26622-1(*) tapered shank | Country of Origin | Israel |
| Remarks | (*) Tools with orientation holes in the flange groove can be supplied on request DGN & GRIP 4.. - 6.. inserts can be used only with right-hand tools, HGPL 4.. - 6.. inserts with left-hand tools After initial groove, no limitation to widening groove outward or toward center |
Shipping Info
Package Weight
1.466
