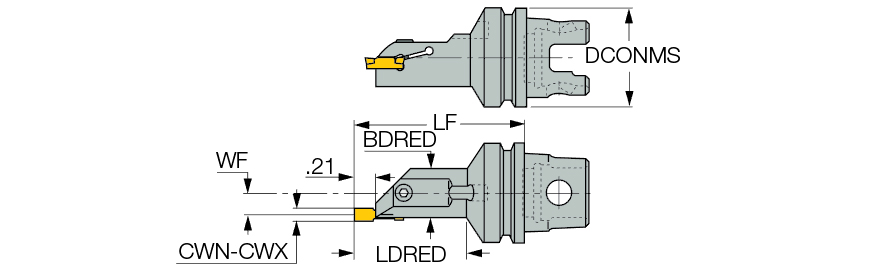

| Cutting Depth Maximum (CDX) | 0.209″ | Application | | Face Grooving | Face Grooving & Turning | Int. Face Grooving | Int. Face Recessing | |
| Cutting Width (CW) | 0.157″ | Tool Type | Indexable Turn & Groov Tools |
| Cutting Width Maximum (CWX) | 0.236″ | Shank Standard | CAMFIX |
| Cutting Width Minimum (CWN) | 0.118″ | Body Material | Steel |
| Cutting Direction (HAND) | Left Hand | Functional Width (WF) | 0.445″ |
| Overall Length (OAL) | 4.094″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.984″ |
Product Features

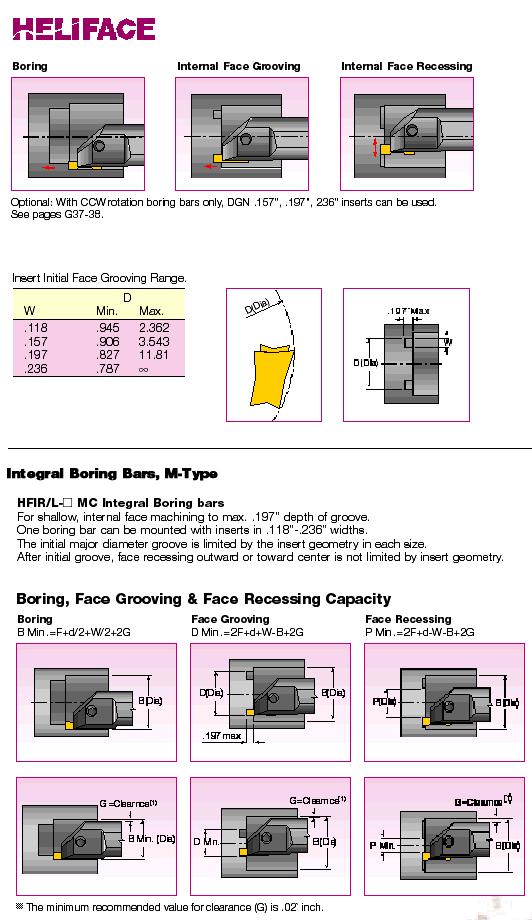

| Family Description | Boring bars for internal grooving and turning with CAMFIX (ISO 26623-1 standard) exchangeable, tapered shanks. Dmin .787″. | Country of Origin | Israel |
Shipping Info
Package Weight
1.041
