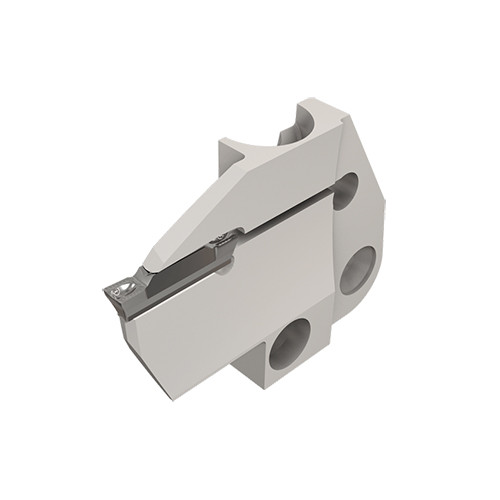

HFPAD 3R-30-T10

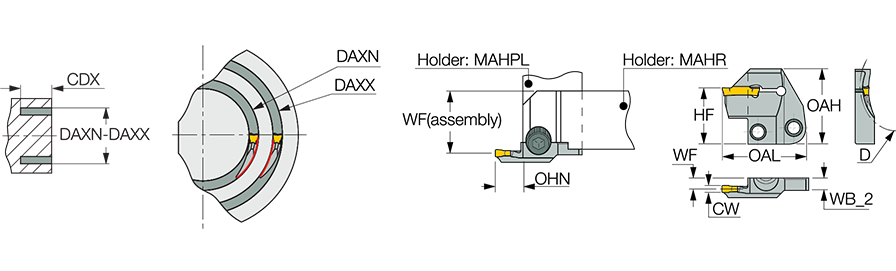

| Cutting Depth Maximum (CDX) | 0.394″ | Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | |
| Cutting Width (CW) | 0.118″ | Tool Type | Face Turning & grooving Tools |
| Cutting Direction (HAND) | Right Hand | Body Material | Steel |
| Axial Groove Outside Diameter Maximum (DAXX) | 1.57″ | Functional Width (WF) | 0.189″ |
| Axial Groove Outside Diameter Minimum (DAXN) | 1.181″ | Measurement Type | Inch |
| Overall Length (OAL) | 1.555″ |
Product Features
| Family Description | Adapters for face grooving and turning in the .984-15″ diameter range. Part of the MODULAR-GRIP system. | Country of Origin | Israel |

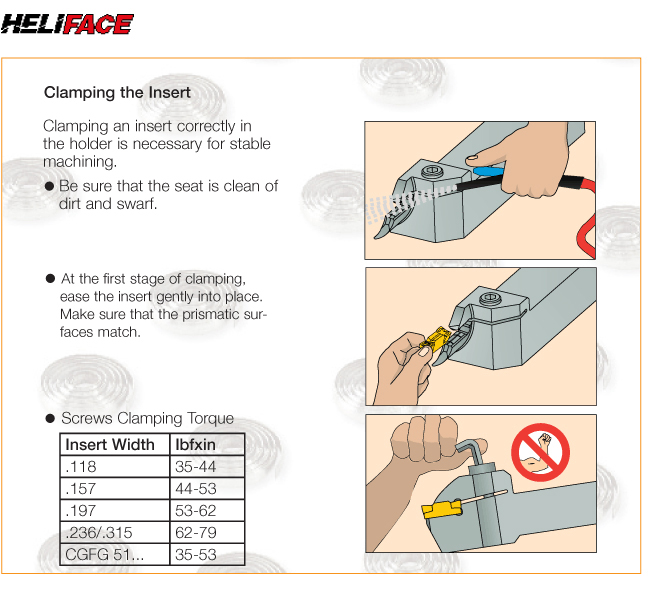

| Remarks | WF(assembly)=WF(shank) + WF(adapter) HGN & GRIP 3.. inserts can be used only with right-hand adapters, HGPL 3..inserts with left-hand adapters For information regarding compatibility with the HATA system, please refer to the additional information provided for each of the intermediate serrated cartridges: IH-HFPAD For insert clamping instructions, click on More Info |
Shipping Info
Package Length
2.25000
Package Width
1.50000
Package Height
.50000
Package Weight
0.101
