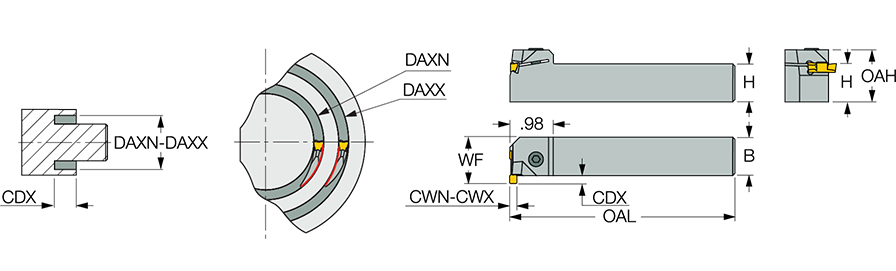

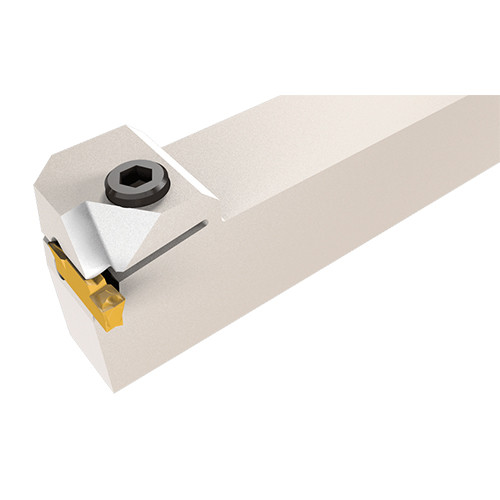

HFHPR 25.4M
| Shank Width (B) | 1″ | Axial Groove Outside Diameter Minimum (DAXN) | 0.95″ |
| Shank Height (H) | 1″ | Overall Length (OAL) | 6″ |
| Cutting Depth Maximum (CDX) | 0.197″ | Application | | Face Grooving | Face Grooving Along Shaft | |
| Cutting Width Maximum (CWX) | 0.236″ | Tool Type | Face Turning & grooving Tools |
| Cutting Width Minimum (CWN) | 0.118″ | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Functional Width (WF) | 1.22″ |
| Axial Groove Outside Diameter Maximum (DAXX) | 78.74″ | Measurement Type | Inch |
Product Features
| Family Description | Perpendicular toolholders for shallow face grooving, Dmin .78″. | Country of Origin | Israel |

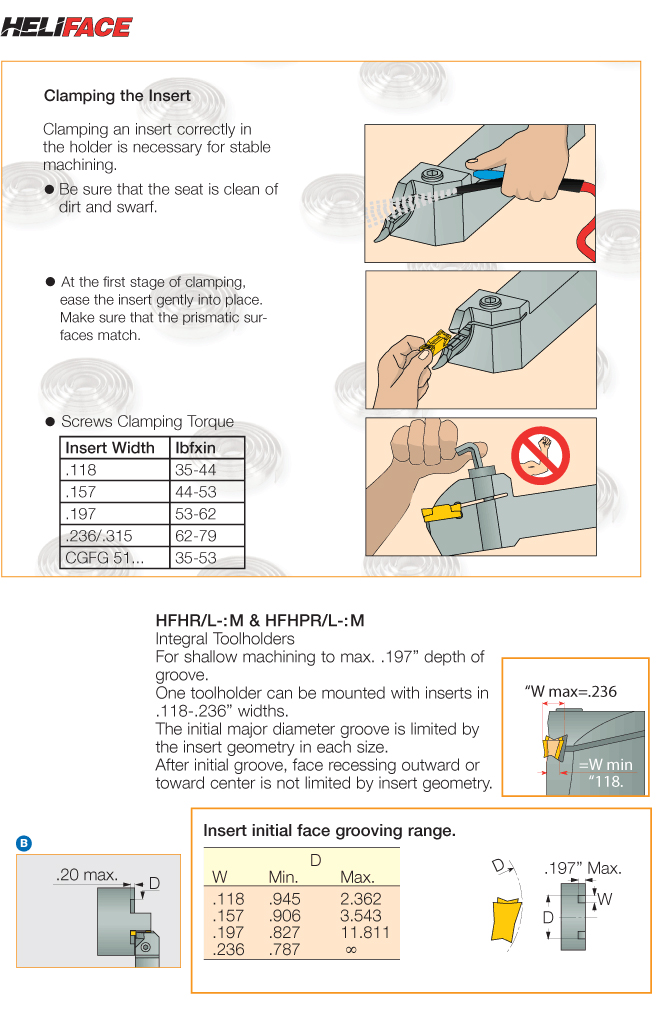

| Remarks | For insert clamping instructions, click on More Info |
Shipping Info
Package Weight
1.715
