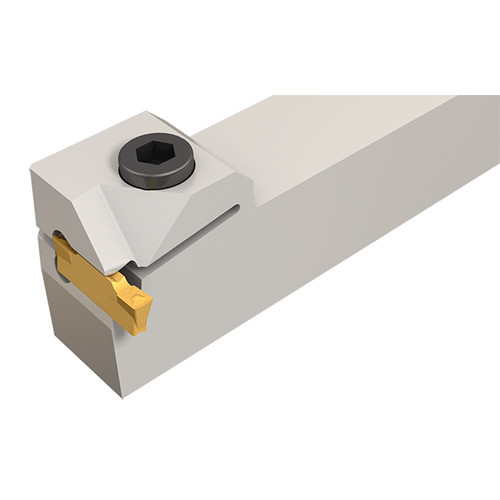

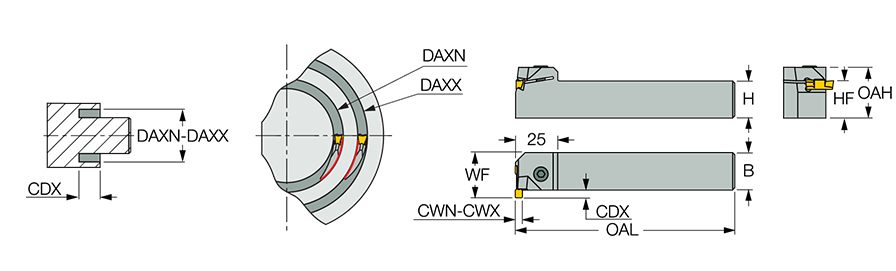

HFHPL 25M
| Shank Width (B) | 25 mm | Overall Length (OAL) | 150 mm |
| Shank Height (H) | 25 mm | Application | | Face Grooving | Face Grooving Along Shaft | |
| Cutting Depth Maximum (CDX) | 5 mm | Tool Type | Face Turning & grooving Tools |
| Cutting Width Maximum (CWX) | 6 mm | Shank Standard | SQ |
| Cutting Width Minimum (CWN) | 3 mm | Body Material | Steel |
| Cutting Direction (HAND) | Left Hand | Functional Width (WF) | 30.3 mm |
| Axial Groove Outside Diameter Maximum (DAXX) | 2000 mm | Measurement Type | Metric |
| Axial Groove Outside Diameter Minimum (DAXN) | 20 mm |
Product Features
| Family Description | Perpendicular toolholders for shallow face grooving Dmin. 20 mm. | Country of Origin | Israel |

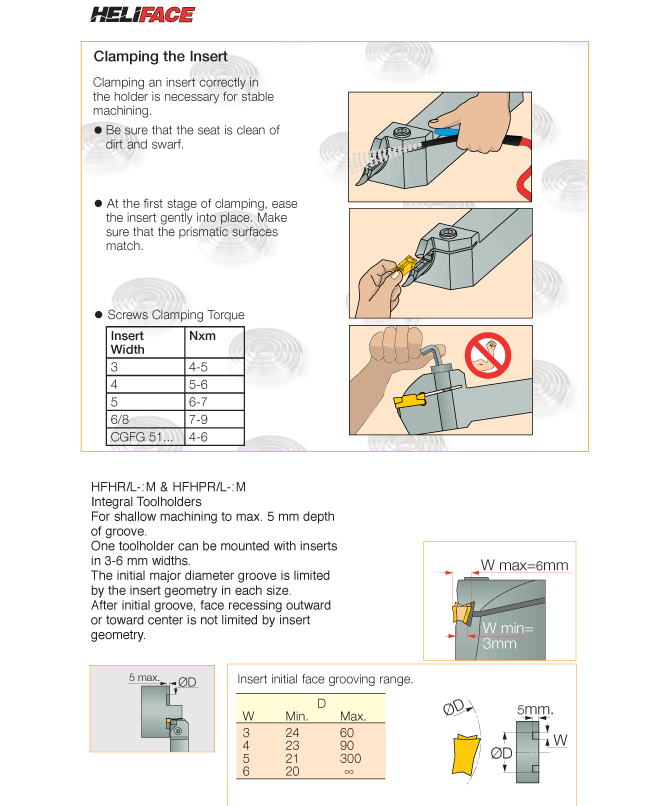

| Remarks | For insert clamping instructions, click on More Info |
Shipping Info
Package Weight
1.755
