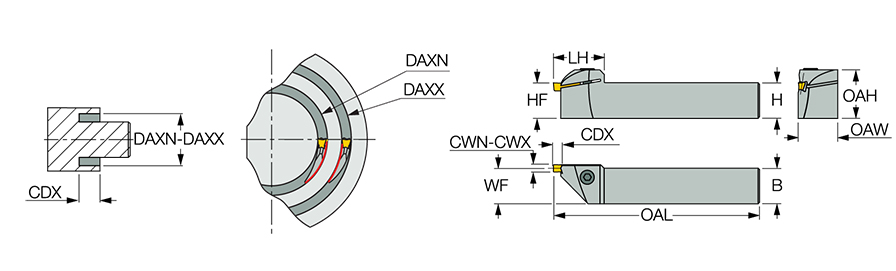

HFHR 20M
| Shank Width (B) | 20 mm | Overall Length (OAL) | 130 mm |
| Shank Height (H) | 20 mm | Application | | Face Grooving | Face Grooving Along Shaft | |
| Cutting Depth Maximum (CDX) | 5.3 mm | Head Length (LH) | 36 mm |
| Cutting Width Maximum (CWX) | 6 mm | Tool Type | Face Turning & grooving Tools |
| Cutting Width Minimum (CWN) | 3 mm | Shank Standard | SQ |
| Cutting Direction (HAND) | Right Hand | Body Material | Steel |
| Axial Groove Outside Diameter Maximum (DAXX) | 2000 mm | Functional Width (WF) | 20 mm |
| Axial Groove Outside Diameter Minimum (DAXN) | 20 mm | Measurement Type | Metric |
Product Features
| Family Description | Toolholders for shallow face grooving | Country of Origin | Israel |

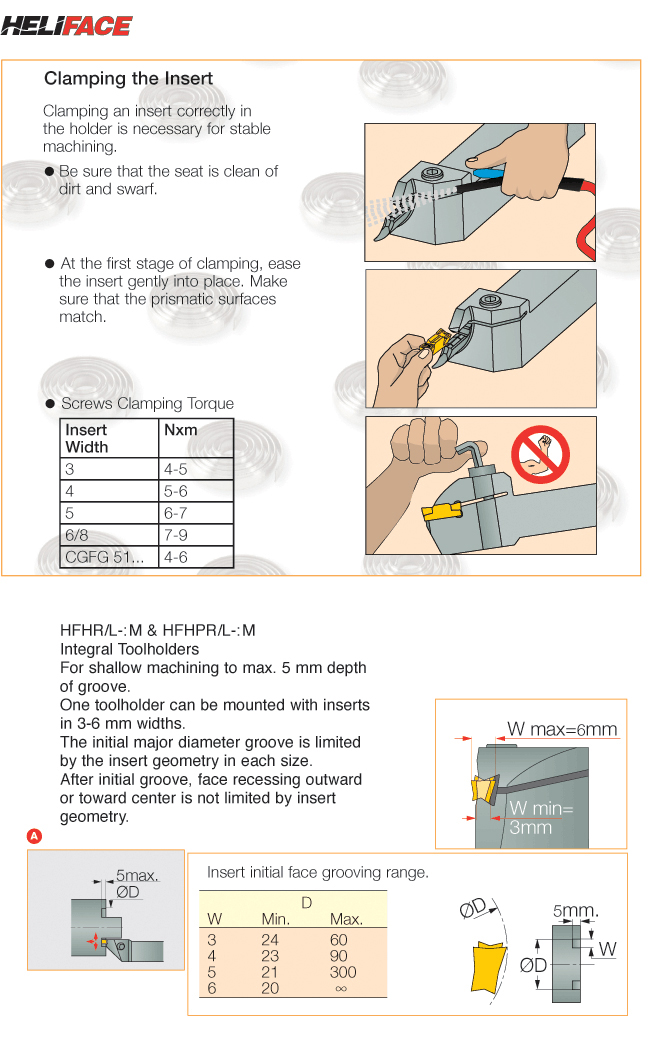

| Remarks | For insert clamping instructions, click on More Info |
Shipping Info
Package Weight
1.005
Related Documentation
DGN & GRIP 4, 5, 6 mm inserts, can be used only with right-hand toolholder.
