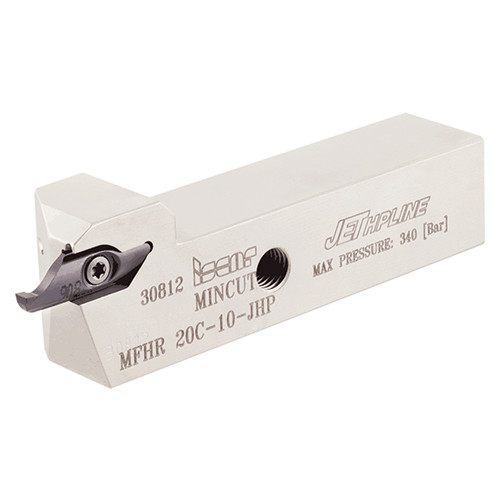

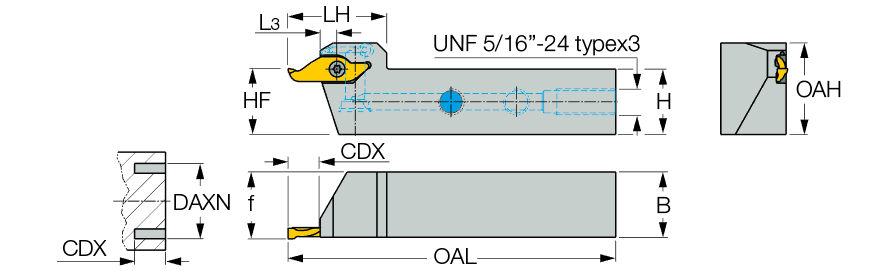

MFHR 20C-10-JHP
| Shank Width (B) | 20 mm | Application | | Face Grooving | Face Grooving & Turning | Int. Face Grooving | Int. Face Recessing | |
| Shank Height (H) | 20 mm | Head Length (LH) | 30 mm |
| Cutting Depth Maximum (CDX) | 9 mm | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Direction (HAND) | Right Hand | Shank Standard | SQ |
| Axial Groove Outside Diameter Minimum (DAXN) | 10 mm | Body Material | Steel |
| Overall Length (OAL) | 100 mm | Measurement Type | Metric |
Product Features
| Family Description | Tools for face grooving applications. They carry screw clamped MINCUT MIFR 10 inserts in a long pocket, providing a very rigid clamping. The tools have high pressure coolant holes. | Country of Origin | Israel |
| Remarks | For D1max, refer to insert data |
Shipping Info
Package Weight
0.663
