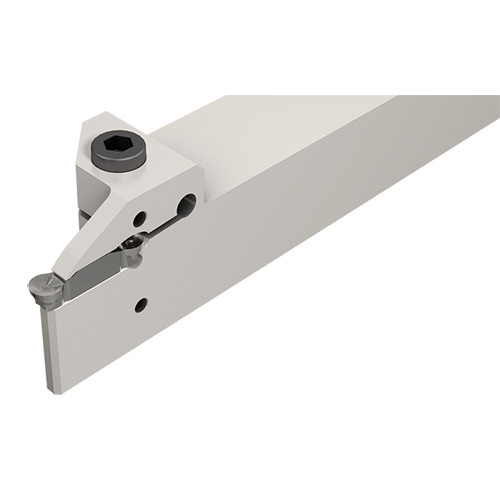

FGHR 2525C-8A

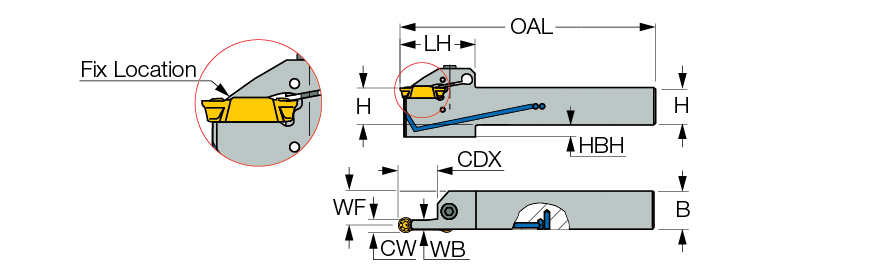

| Shank Width (B) | 25 mm | Head Length (LH) | 50 mm |
| Shank Height (H) | 25 mm | Tool Type | Turn-Groove Tools |
| Cutting Depth Maximum (CDX) | 25 mm | Shank Standard | SQ |
| Cutting Width (CW) | 8 mm | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Functional Width (WF) | 22 mm |
| Overall Length (OAL) | 170 mm | Measurement Type | Metric |
| Application | | Ext. Profiling | Ext. Turning Aluminum Wheels | |
Product Features
| Family Description | Tools with internal coolant holes, very strong insert grip, used for interrupted cuts and back turning of aluminum wheels. | Country of Origin | Israel |

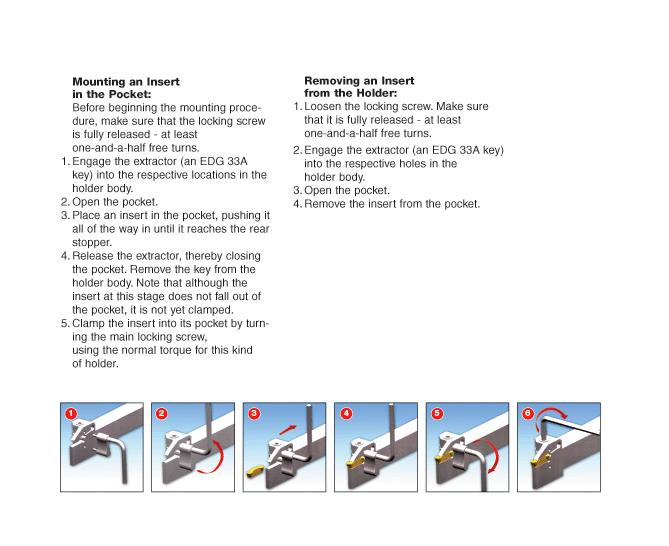

| Remarks | Upper jaw with hard coating to sustain chip deflection Note: For mounting and removing the inserts, click on More Info |
Shipping Info
Package Weight
1.898
Related Documentation
