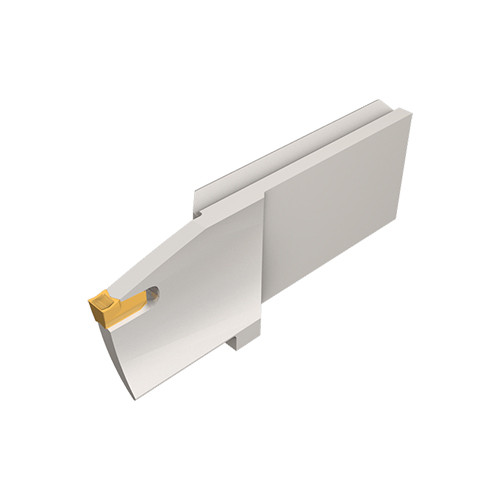

SGFFA 45-R-4

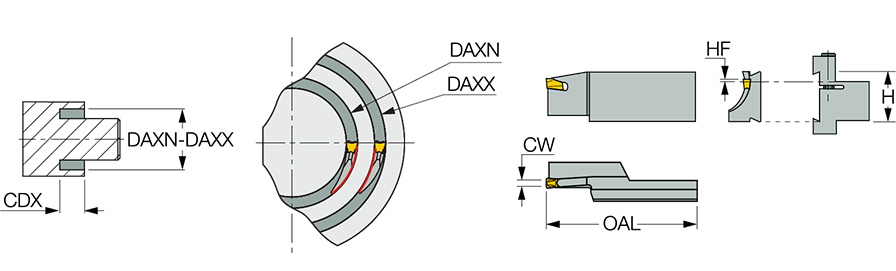

| Shank Height (H) | 1.26″ | Overall Length (OAL) | 3.583″ |
| Cutting Depth Maximum (CDX) | 0.984″ | Application | | Face Grooving | Face Grooving Along Shaft | |
| Cutting Width (CW) | 0.157″ | Tool Type | Face Grooving Tools |
| Cutting Direction (HAND) | Right Hand | Shank Standard | SQ |
| Axial Groove Outside Diameter Maximum (DAXX) | 2.28″ | Body Material | Steel |
| Axial Groove Outside Diameter Minimum (DAXN) | 1.732″ | Measurement Type | Inch |
Product Features
| Family Description | SELF-GRIP reinforced face grooving blades, used on standard tool blocks. | Country of Origin | Israel |
| Remarks | Important: Apply R.H. insert on R.H. tool and L.H. insert on L.H. tool. Neutral insert only as indicated H dimension links blades and blocks |
Shipping Info
Package Weight
0.457
