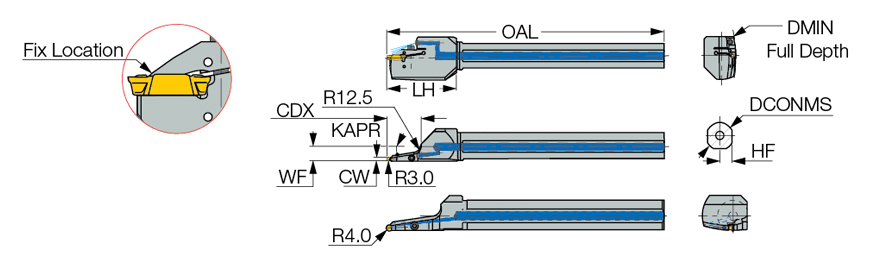

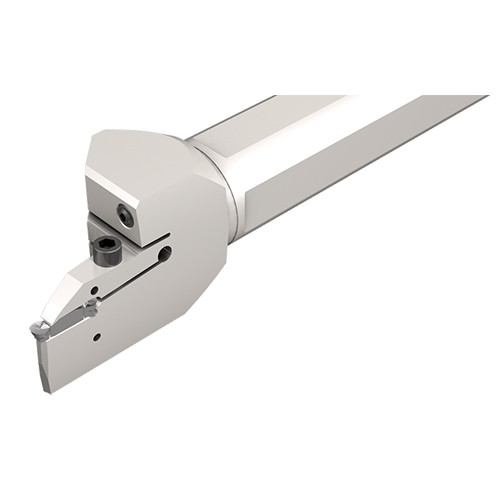

FGHIFR 40C-8A-8
| Cutting Depth Maximum (CDX) | 70 mm | Head Length (LH) | 100 mm |
| Cutting Width (CW) | 8 mm | Minimum Bore Diameter (DMIN) | 300 mm |
| Cutting Direction (HAND) | Right Hand | Tool Type | Indexable Turn & Groov Tools |
| Overall Length (OAL) | 320 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Functional Width (WF) | 19.5 mm |
| Work Piece Parting Diameter Maximum (CUTDIA) | 360 mm | Measurement Type | Metric |
| Application | | Int. Machining Aluminum Wheels | |
Product Features
| Family Description | 8° / 10° approach angle bars, for interrupted cuts and back turning on aluminum | Country of Origin | Israel |
| Remarks | Upper jaw with hard coating to sustain chip deflection |
Shipping Info
Package Weight
5.913
