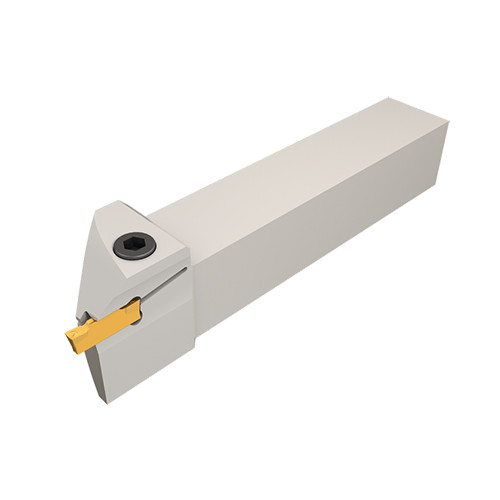

HFHR 19M

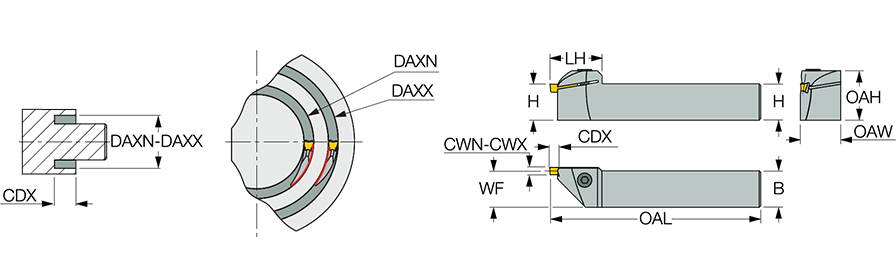

| Shank Width (B) | 3/4″ | Overall Length (OAL) | 5″ |
| Shank Height (H) | 3/4″ | Application | | Face Grooving | Face Grooving Along Shaft | |
| Cutting Depth Maximum (CDX) | 0.209″ | Head Length (LH) | 1.42″ |
| Cutting Width Maximum (CWX) | 0.236″ | Tool Type | Face Turning & grooving Tools |
| Cutting Width Minimum (CWN) | 0.118″ | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Functional Width (WF) | 3/4″ |
| Axial Groove Outside Diameter Maximum (DAXX) | 78.74″ | Measurement Type | Inch |
| Axial Groove Outside Diameter Minimum (DAXN) | 0.79″ |
Product Features

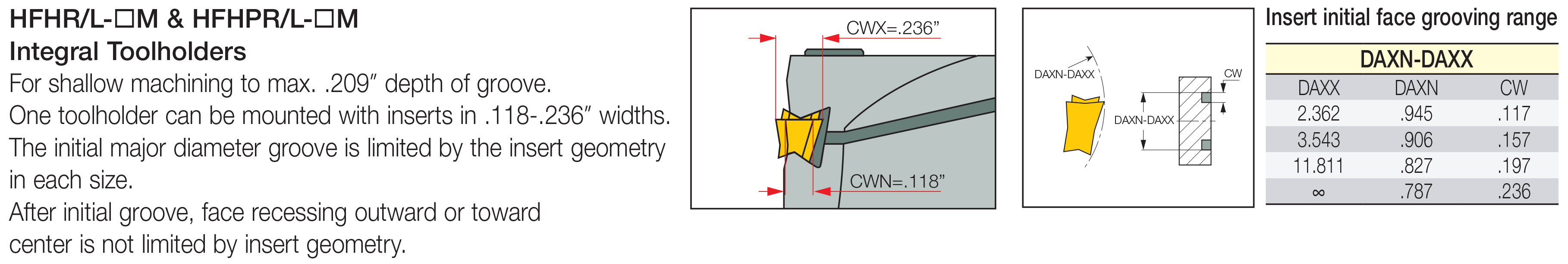

| Family Description | Toolholders for shallow face grooving | Country of Origin | Israel |
| Remarks | For insert clamping instructions, click on More Info |
Shipping Info
Package Weight
0.899
Related Documentation
DGN & GRIP 4, 5, 6 mm inserts, can be used only with right-hand toolholder.
