HFAIR 180C-6T38DG

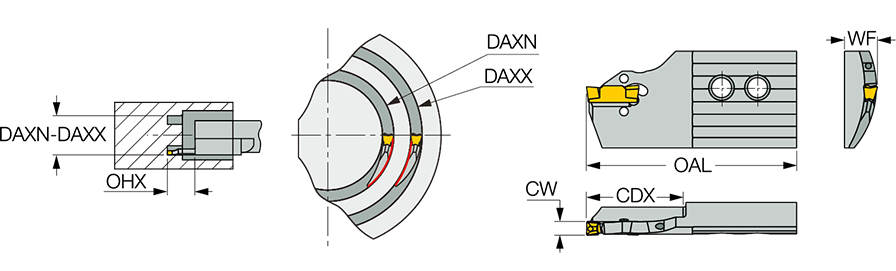

| Cutting Depth Maximum (CDX) | 1.496″ | Application | | Face Grooving | Face Grooving & Turning | Int. Face Grooving | Int. Face Recessing | |
| Cutting Width (CW) | 0.236″ | Tool Type | Face Turning & grooving Tools |
| Cutting Direction (HAND) | Right Hand | Body Material | Steel |
| Axial Groove Outside Diameter Minimum (DAXN) | 7.087″ | Functional Width (WF) | 0.488″ |
| Overall Length (OAL) | 3.012″ | Measurement Type | Inch |
Product Features
| Family Description | Adapters for internal face grooving and turning. Dmin 2.16″ | Country of Origin | Israel |
| Remarks | After initial groove, no limitation to widening groove outward or toward center DGN & GRIP inserts can be used only on right-hand tools, HFPR/L right-hand inserts on right-hand tools (same for left-hand), and HGPL inserts only on left-hand tools. For information regarding compatibility with the HATA system, please refer to the additional information provided for each of the intermediate serrated cartridges: IH-HFAIR |
Shipping Info
Package Weight
0.339
