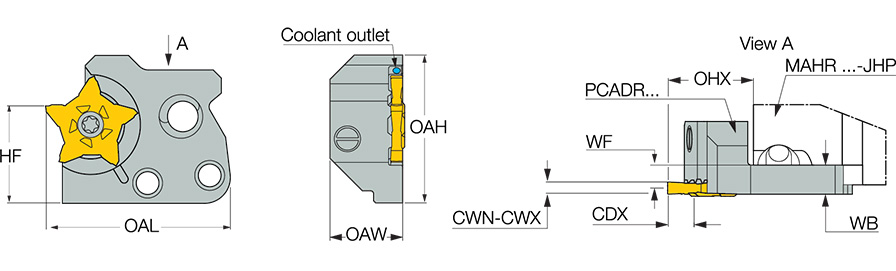

PCADR 24-JHP-QC
Parting Off Holder; 1.795″ OAL × 0.02″ CW Min. × 1/8″ CW Max. × 0.252″ Max Depth × 1.441″ OAH ; Steel
| Body Width (WB) | 0.2835″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.02″ | Tool Type | Parting & Grooving Tools |
| Cutting Width Maximum (CWX) | 1/8″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 1.795″ | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 0.252″ | Functional Width (WF) | 0.224″ |
| Overall Height (OAH) | 1.441″ | Tool Assembly Length (LTA) | 1.829″ |
| Application | | Ext. Grooving | Parting | |
Product Features
| Family Description | QUICK-PENTA adapters with high-pressure coolant holes, for QUICK-PENTA grooving and parting inserts. | Country of Origin | Israel |
| Remarks | CDX and CUTDIA according to insert limitation |
Shipping Info
Package Weight
116
