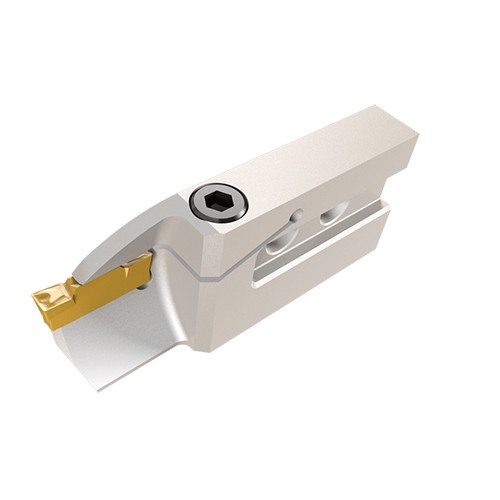

HFAIR 34-4T18

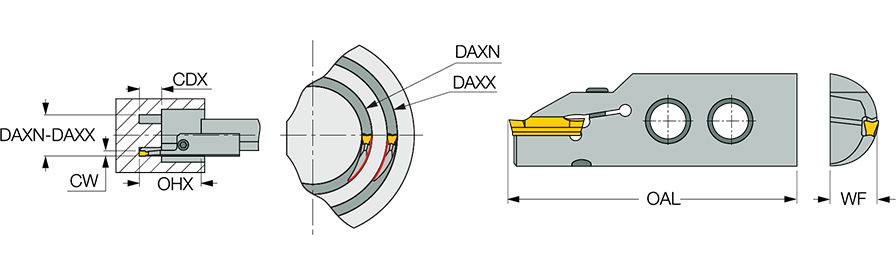

| Cutting Depth Maximum (CDX) | 0.709″ | Application | | Face Grooving | Face Grooving & Turning | Int. Face Grooving | Int. Face Recessing | |
| Cutting Width (CW) | 0.157″ | Tool Type | Face Turning & grooving Tools |
| Cutting Direction (HAND) | Right Hand | Body Material | Steel |
| Axial Groove Outside Diameter Maximum (DAXX) | 1.57″ | Functional Width (WF) | 0.602″ |
| Axial Groove Outside Diameter Minimum (DAXN) | 1.339″ | Measurement Type | Inch |
| Overall Length (OAL) | 2.638″ |
Product Features
| Family Description | Adapters for internal face grooving and turning. Dmin 1.34″ | Country of Origin | Israel |

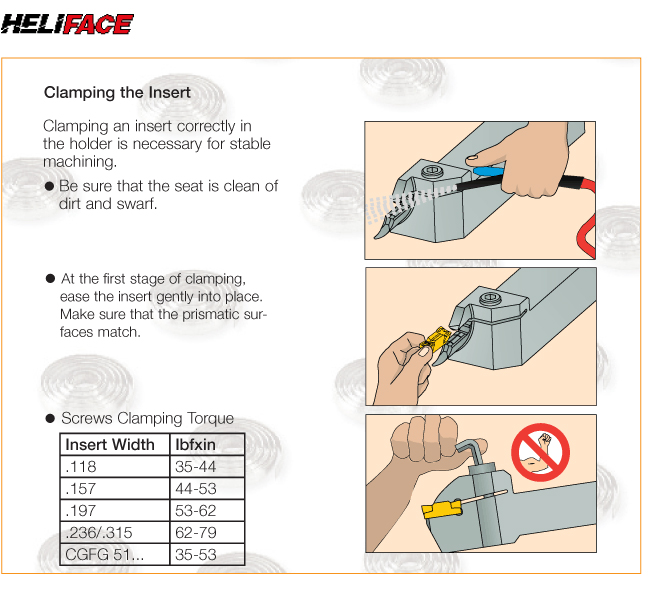

| Remarks | For information regarding compatibility with the HATA system, please refer to the additional information provided for each of the intermediate serrated cartridges: IH-HFAIR, IH-TNFPAD, IH-HFPAD For insert clamping instructions, click on More Info |
Shipping Info
Package Length
3.50000
Package Width
1.50000
Package Height
1.50000
Package Weight
0.300
