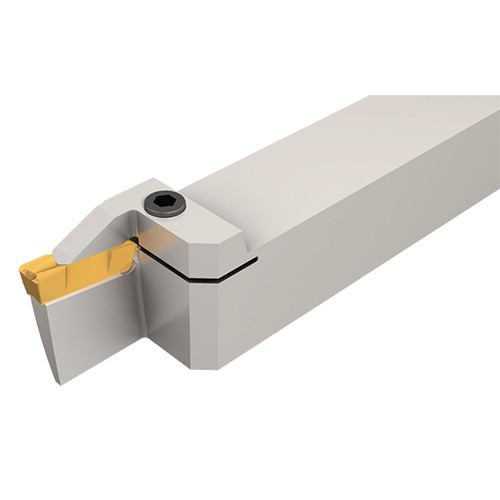

GHFGR 31.7-155-8

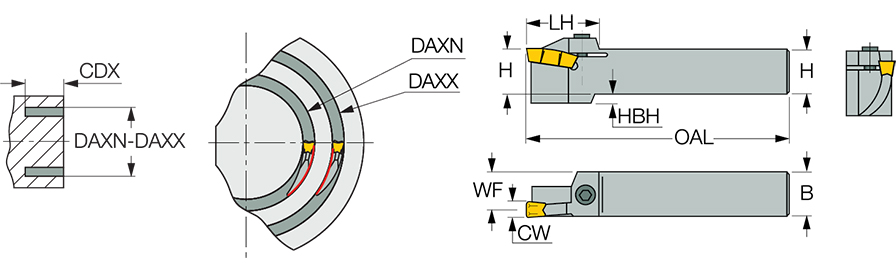

| Shank Width (B) | 1-1/4″ | Overall Length (OAL) | 6.7″ |
| Shank Height (H) | 1-1/4″ | Application | | Face Grooving | Face Grooving & Turning | |
| Cutting Depth Maximum (CDX) | 0.984″ | Head Length (LH) | 1.71″ |
| Cutting Width (CW) | 0.315″ | Tool Type | Face Turning & grooving Tools |
| Cutting Direction (HAND) | Right Hand | Body Material | Steel |
| Axial Groove Outside Diameter Maximum (DAXX) | 20.1″ | Functional Width (WF) | 1.11″ |
| Axial Groove Outside Diameter Minimum (DAXN) | 6.1″ | Measurement Type | Inch |
Product Features
| Family Description | Holders for face grooving and turning Dmin. 3.14″. | Country of Origin | Israel |

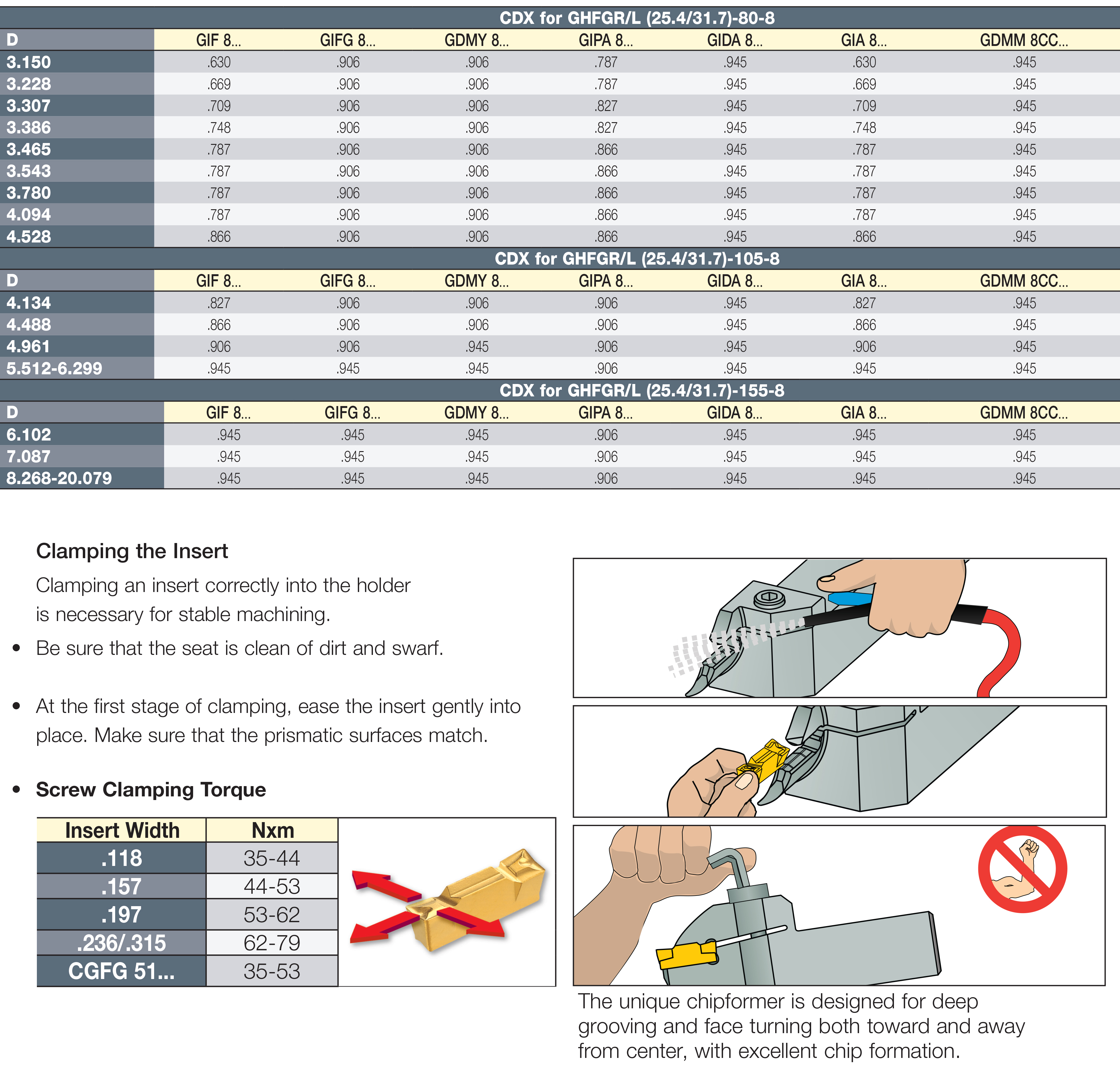

| Remarks | No limitation to widening the groove either way after initial grooving CDX depends on the penetration diameter and the insert For user guide and clamping instructions, click on More Info |
Shipping Info
Package Weight
2.835
Related Documentation
GHFG integral toolholders for face grooving and turning in both directions. Initial grooving of major diameter ranges 50 to 80 mm with holders GHFG, inserts GIFG-8. 80 to 250 mm with GHFGR/L and GIF-8. Grooving depths up to 25 mm.
