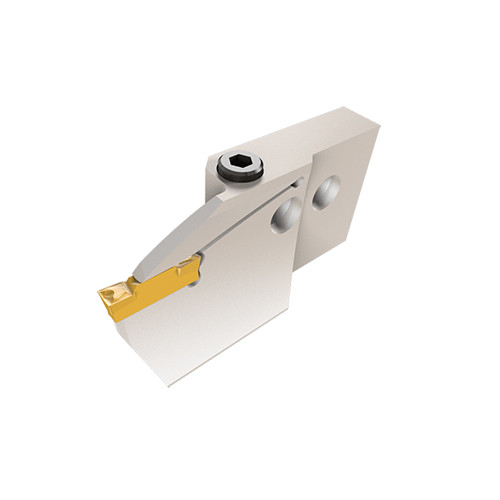

HFAEL 60-4T25

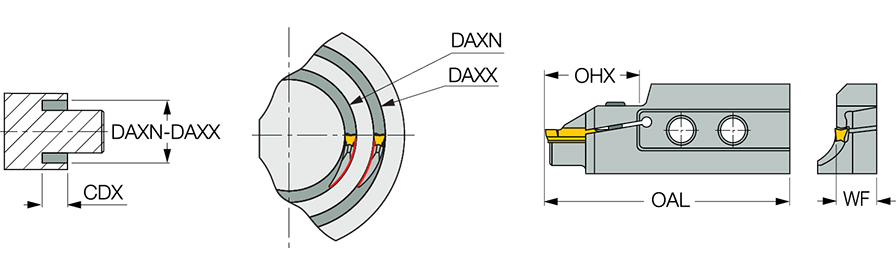

| Cutting Depth Maximum (CDX) | 0.984″ | Overall Length (OAL) | 2.697″ |
| Cutting Width (CW) | 0.157″ | Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | |
| Cutting Width Maximum (CWX) | 0″ | Tool Type | Face Turning & grooving Tools |
| Cutting Width Minimum (CWN) | 0″ | Body Material | Steel |
| Cutting Direction (HAND) | Left Hand | Functional Width (WF) | 0.457″ |
| Axial Groove Outside Diameter Maximum (DAXX) | 2.95″ | Measurement Type | Inch |
| Axial Groove Outside Diameter Minimum (DAXN) | 2.362″ |
Product Features
| Family Description | Adapters for external facing along shaft. Dmin. 1.57″. | Country of Origin | Israel |

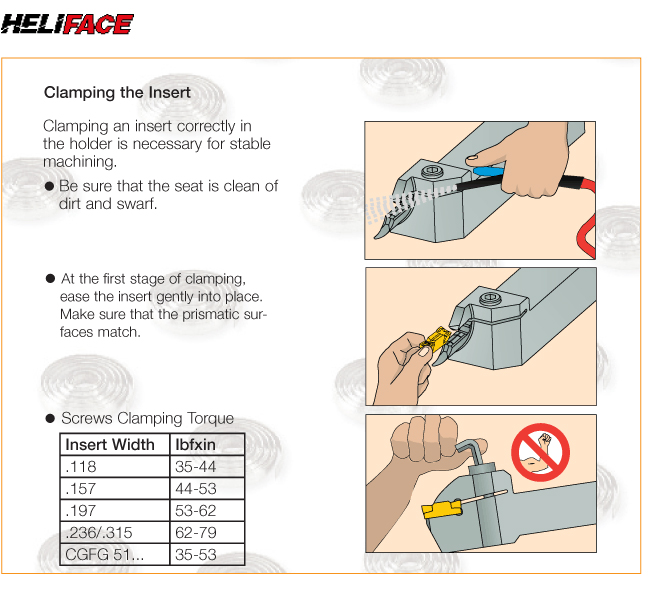

| Remarks | For insert clamping instructions, click on More Info |
Shipping Info
Package Weight
0.346
