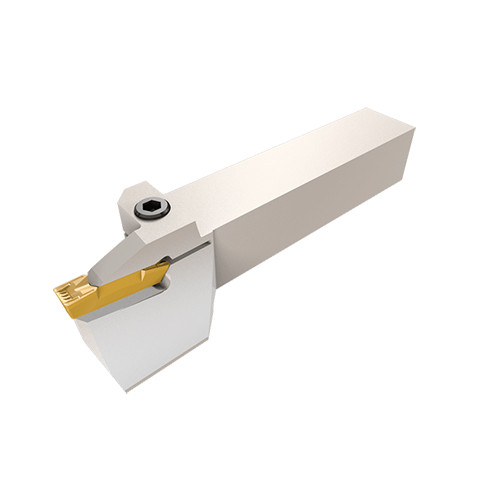

GHFG 25.4-63R-8
Holders for face grooving and turning Dmin. 1.96″. Can machine along shafts.

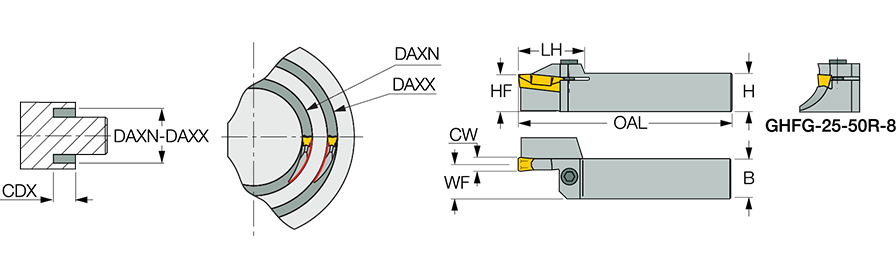

| Shank Width (B) | 1″ | Overall Length (OAL) | 6″ |
| Shank Height (H) | 1″ | Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | |
| Cutting Depth Maximum (CDX) | 1″ | Head Length (LH) | 1.6″ |
| Cutting Width (CW) | 0.315″ | Tool Type | Face Turning & grooving Tools |
| Cutting Direction (HAND) | Right Hand | Body Material | Steel |
| Axial Groove Outside Diameter Maximum (DAXX) | 3.23″ | Functional Width (WF) | 0.87″ |
| Axial Groove Outside Diameter Minimum (DAXN) | 2.48″ | Measurement Type | Inch |
Product Features
| Family Description | Holders for face grooving and turning Dmin. 1.96″. Can machine along shafts. | Country of Origin | Israel |
| Remarks | For insert clamping instructions, click on More Info. |
Shipping Info
Package Weight
1.671
