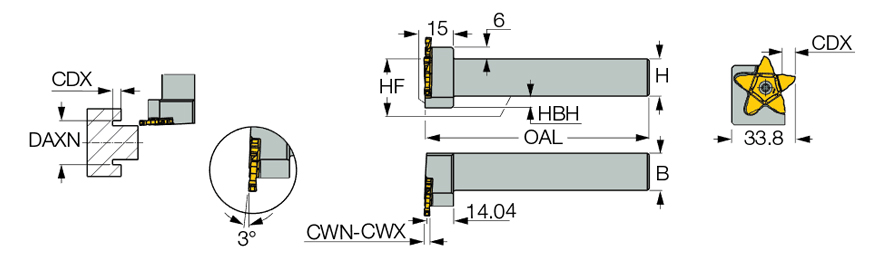

| Shank Width (B) | 25 mm | Overall Length (OAL) | 135 mm |
| Shank Height (H) | 25 mm | Application | | Face Grooving | Face Grooving Along Shaft | |
| Cutting Depth Maximum (CDX) | 5 mm | Tool Type | Face Grooving Tools |
| Cutting Width Maximum (CWX) | 4 mm | Body Material | Steel |
| Cutting Width Minimum (CWN) | 2.39 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand |
Product Features

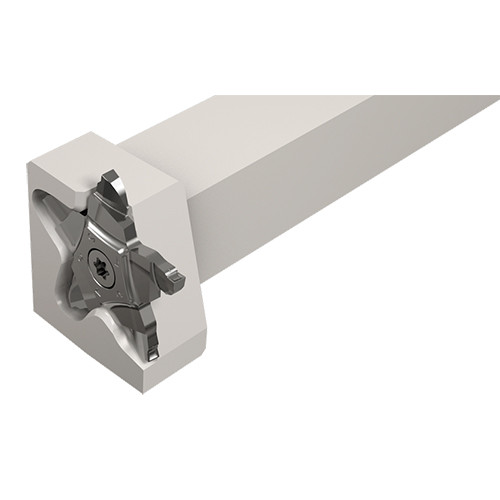

| Family Description | Perpendicular shank tools that mount pentagonal inserts for machining next to long central shaft. The inserts are positioned nearly perpendicular to the shanks, slightly tilted to enable machining next to the long central shafts. | Country of Origin | Israel |
Shipping Info
Package Weight
1.565
