| Application | | Inserts | | Min D.O.C. | 0.0012″ |
| Corner Radius (RE) | 0.0157″ | Depth of Cut Maximum (APMX) | 0.0087″ |
| Cutting Edge Length (L) | 0.654″ | Min. Turning Feed (ft(min)) | 0.0012 ″/rev |
| Insert Thickness (S) | 0.187″ | Max. Turning Feed (ft(max)) | 0.0079 ″/rev |
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | PCBN | Chip Breaker Type | Wavy-HP |
| Coating | TiCN | Measurement Type | Inch |
| Grade | BM05M | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.15″ | Cutting Edge Effective Length (LE) | 0.102″ |
| Tool Type | Turn Negative Inserts |
Product Features

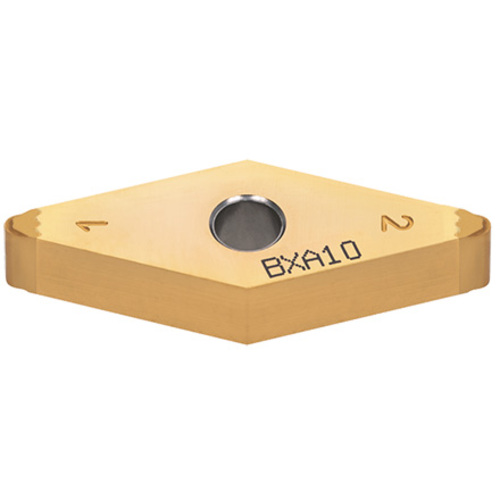

| Family Description | Negative relief ang., G class, 35 deg rhombic CBN insert with chipbreaker for finishing hardened steel, applied WavyJoint brazing technology | Country of Origin | Japan |
