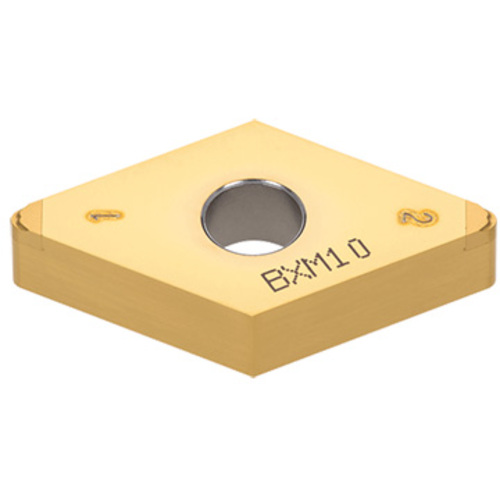

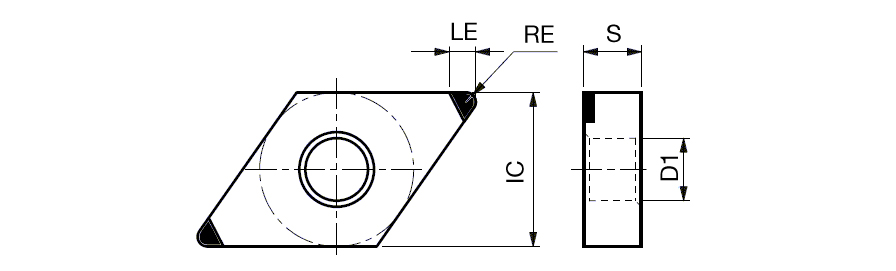

2QP-DNGM 442 HP BM05M
| Application | | Inserts | | Min D.O.C. | 0.0012″ |
| Corner Radius (RE) | 0.0315″ | Depth of Cut Maximum (APMX) | 0.0087″ |
| Cutting Edge Length (L) | 0.61″ | Min. Turning Feed (ft(min)) | 0.0012 ″/rev |
| Insert Thickness (S) | 1/4″ | Max. Turning Feed (ft(max)) | 0.0098 ″/rev |
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | PCBN | Chip Breaker Type | Nega-HP |
| Coating | TiCN | Measurement Type | Inch |
| Grade | BM05M | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.203″ | Cutting Edge Effective Length (LE) | 0.083″ |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | Negative relief ang., G class, 55deg rhombic CBN insert with chipbreaker for finishing of hardened steel | Country of Origin | Japan |
