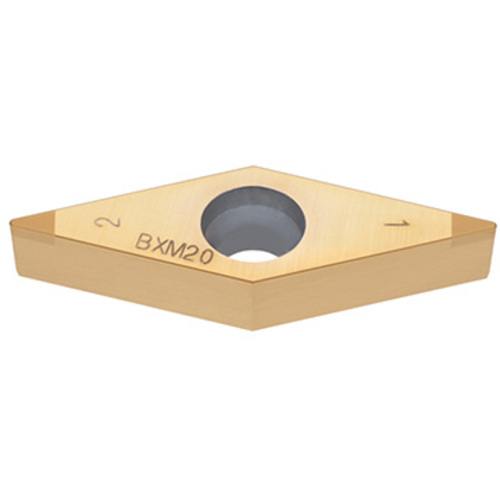

2QP-VBGW 332LC BM05M
| Application | | Inserts | | Min D.O.C. | 0.002″ |

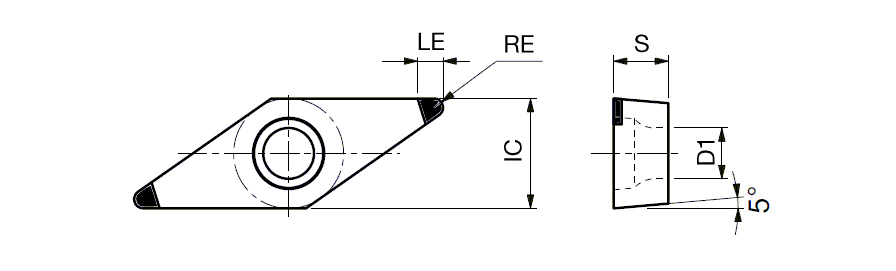

| Corner Radius (RE) | 0.0315″ | Depth of Cut Maximum (APMX) | 0.0197″ |
| Cutting Edge Length (L) | 0.654″ | Min. Turning Feed (ft(min)) | 0.0012 ″/rev |
| Insert Thickness (S) | 0.187″ | Max. Turning Feed (ft(max)) | 0.0098 ″/rev |
| Inscribed Circle Diameter (IC) | 3/8″ | Clearance Angle Major (AN) | 5 Degrees |
| Cutting Edge Material | PCBN | Cutting Direction (HAND) | Neutral |
| Coating | TiCN | Chip Breaker Type | LC-CBN |
| Grade | BM05M | Measurement Type | Inch |
| Fixing Hole Diameter (D1) | 0.173″ | Body Material | Carbide |
| Tool Type | Turn Ultra hard Inserts | Cutting Edge Effective Length (LE) | 0.087″ |
Product Features
| Family Description | Positive 5 deg relief angle, M/G class, 35 deg rhombic CBN insert | Country of Origin | Japan |
| Remarks | The last letter of designation means Edge preparation (EP) as below. Without letter, SR: Standard EP F: Sharp edge E: EP for preventing vibration and for suppressing work deformation L: EP for reducing flank wear LF: EP for reducing burrs LC: EP for reducing crater wear LT, H, HC: EP for reducing fracture W, WL, WJ, WG: Wiper |
Shipping Info
Package Weight
0
