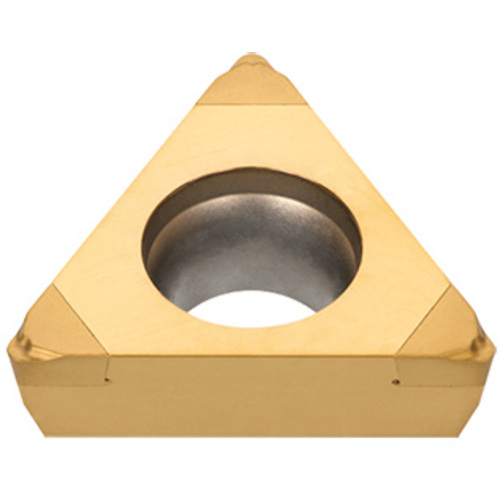

3QP-TPGT 222 HP BM05M
| Application | | Inserts | | Min D.O.C. | 0.0012″ |
| Corner Radius (RE) | 0.031″ | Depth of Cut Maximum (APMX) | 0.0087″ |
| Cutting Edge Length (L) | 0.433″ | Min. Turning Feed (ft(min)) | 0.0012 ″/rev |
| Insert Thickness (S) | 1/8″ | Max. Turning Feed (ft(max)) | 0.0098 ″/rev |
| Inscribed Circle Diameter (IC) | 1/4″ | Clearance Angle Major (AN) | 11 Degrees |
| Cutting Edge Material | PCBN | Cutting Direction (HAND) | Neutral |
| Coating | TiCN | Chip Breaker Type | Posi-HP |
| Grade | BM05M | Measurement Type | Inch |
| Fixing Hole Diameter (D1) | 0.134″ | Body Material | Carbide |
| Tool Type | Turn Positive Inserts | Cutting Edge Effective Length (LE) | 0.075″ |
Product Features
| Family Description | Positive 11deg relief ang., G class, triangular CBN insert with chipbreaker for finishing of hardend steel | Country of Origin | Japan |
Shipping Info
Package Weight
0
