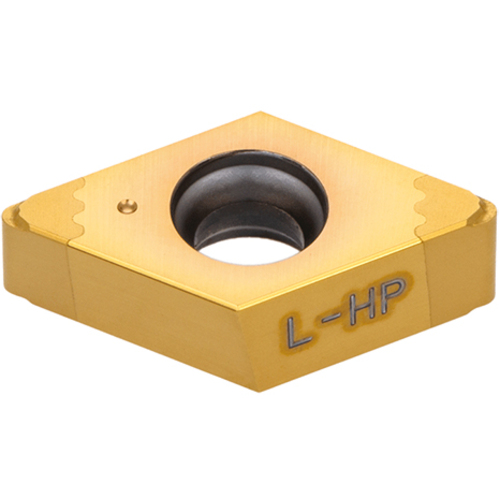

4QS-DXGU 221L HP BM05M

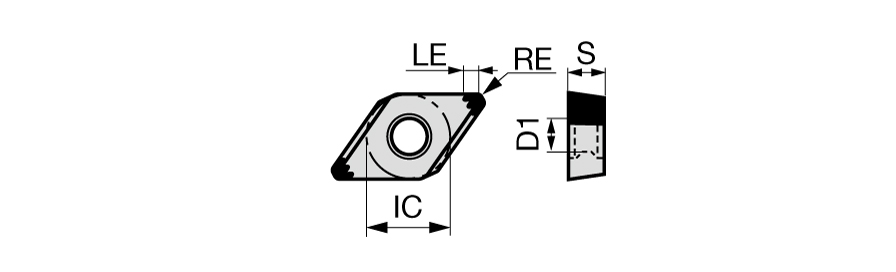

| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0197″ |
| Corner Radius (RE) | 0.0157″ | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Insert Thickness (S) | 1/8″ | Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Cutting Edge Material | PCBN | Cutting Direction (HAND) | Left Hand |
| Coating | TiCN | Chip Breaker Type | MFT Wavy-HP |
| Grade | BM05M | Measurement Type | Inch |
| Fixing Hole Diameter (D1) | 0.106″ | Body Material | Carbide |
| Tool Type | Turn Positive Inserts | Cutting Edge Effective Length (LE) | 0.079″ |
| Min D.O.C. | 0.002″ |
Product Features
| Family Description | Double sided 55 deg rhombic CBN insert with chipbreaker for precision finishing hardened steel, applied WavyJoint brazing technology | Country of Origin | Japan |
Shipping Info
Package Weight
0
