| Application | | Inserts | | Min D.O.C. | 0.002″ |
| Corner Radius (RE) | 0.0315″ | Depth of Cut Maximum (APMX) | 0.0197″ |
| Cutting Edge Length (L) | 0.067″ | Min. Turning Feed (ft(min)) | 0.0012 ″/rev |
| Insert Thickness (S) | 1/8″ | Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Inscribed Circle Diameter (IC) | 1/4″ | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | PCBN | Chip Breaker Type | MFT Wavy-FT |
| Coating | TiCN | Measurement Type | Inch |
| Grade | BM05M | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.106″ | Cutting Edge Effective Length (LE) | 0.067″ |
| Tool Type | Turn Negative Inserts |
Product Features

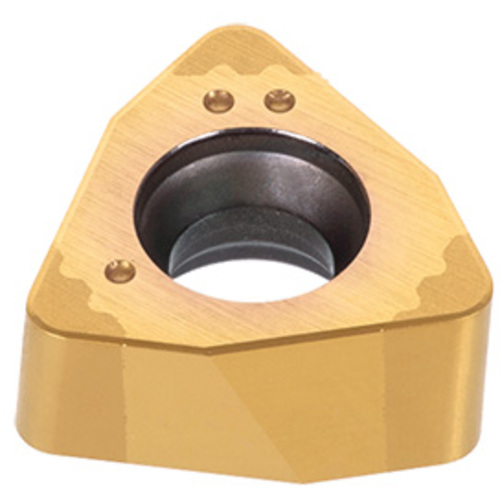

| Family Description | Double sided trigon CBN insert, applied WavyJoint brazing technology | Country of Origin | Japan |
