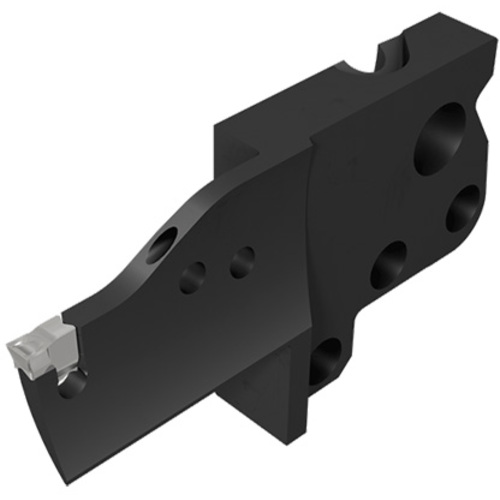

TNFPAD-XL 4R-35T35-JHP

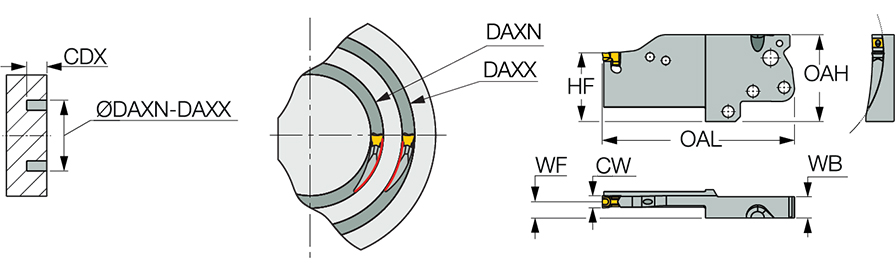

| Cutting Depth Maximum (CDX) | 1.378″ | Application | | Face Grooving | Face Grooving Along Shaft | |
| Cutting Width (CW) | 0.157″ | Tool Type | Face Turning & grooving Tools |
| Cutting Direction (HAND) | Right Hand | Body Material | Steel |
| Axial Groove Outside Diameter Maximum (DAXX) | 2.09″ | Functional Width (WF) | 0.315″ |
| Axial Groove Outside Diameter Minimum (DAXN) | 1.378″ | Measurement Type | Inch |
| Overall Length (OAL) | 3.15″ |
Product Features
| Family Description | Adapters for face grooving, for 1.377-12.28″ diameter range.Part of the MODULAR-GRIP system. | Country of Origin | Israel |
| Remarks | WF(assembly)=WF(shank) + WF(adapter) TNF 4..5..6 inserts can be used with left and right hand adapters. For information regarding compatibility with the HATA system, please refer to the additional information provided for each of the intermediate serrated cartridges: IH-TNFPAD |
Shipping Info
Package Weight
0.619
