HM390 ETPD1.-3MMT15-10JHP
Indexable End Mill; 1″ Dia. × 0.315″ LOC × 0.945″ Shank Dia. × 1.772″ OAL ; 3 FL ; 90 Degrees

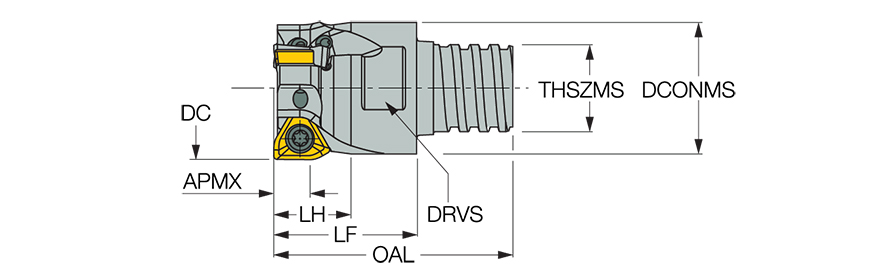

| Cutting Diameter (DC/DCX) | 1″ | Tool Type | 90° indexable endmills |
| Cutting Diameter (DC) | 1″ | Connection Thread Nominal Size Machine Side (THSZMS) | T15 |
| Cutting Item Count (CICT) | 3 | Drive Size (DRVS) | 0.787″ |
| Depth of Cut Maximum (APMX) | 0.315″ | Flute Count (NOF) | 3 |
| Overall Length (OAL) | 1.772″ | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 2.9 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.945″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | HM390 TPKT 1003 PDR | Body Material | Steel |
| Functional Length (LF) | 1.102″ | Connection Code Machine Side (CCMS) | MultiMaster |
Product Features
| Family Description | 90° JHP endmill with a MULTI-MASTER threaded adaptation and pinpointed coolant outlets carrying HM390 triangular inserts with helical cutting edges | Country of Origin | Israel |
| Remarks | When installing inserts with a corner radius greater than .079, modify the tool body by rounding the corner of the insert pocket, as detailed in More Info Do not apply lubricant to the threaded connection |
Shipping Info
Package Weight
201
