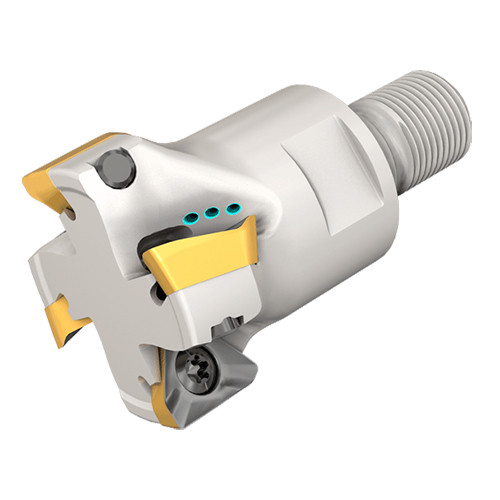

HM390 ETC D16-2-M08-07JHP
Indexable End Mill; 16 mm Dia. × 5 mm LOC × 15.3 mm Shank Dia. × 38 mm OAL ; 2 FL ; 90 Degrees

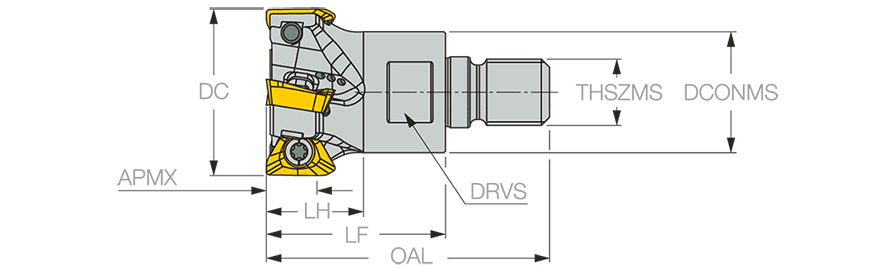

| Cutting Diameter (DC/DCX) | 16 mm | Functional Length (LF) | 20.5 mm |
| Cutting Diameter (DC) | 16 mm | Connection Thread Nominal Size Machine Side (THSZMS) | M08 |
| Cutting Item Count (CICT) | 2 | Flute Count (NOF) | 2 |
| Depth of Cut Maximum (APMX) | 5 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 38 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 1.9 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 15.3 mm | Body Material | Steel |
| Master Insert Identification (MIID) | HM390 TCKT 0703 PCTR | Connection Code Machine Side (CCMS) | FLEXFIT |
| Head Length (LH) | 9.7 mm |
Product Features
| Family Description | 90° JHP endmill with a FLEXFIT threaded adaptation and pinpointed coolant outlets carrying HM390 triangular inserts with helical cutting edges | Country of Origin | Israel |
| Remarks | Before mounting the FLEX-FIT adaptation, clean the mating surfaces and threads. Tighten to eliminate gaps, using the torque value from TQ_3 When installing inserts with a corner radius greater than 2 mm, modify the tool body by rounding the corner of the insert pocket, as detailed in More Info |
Shipping Info
Package Weight
99
