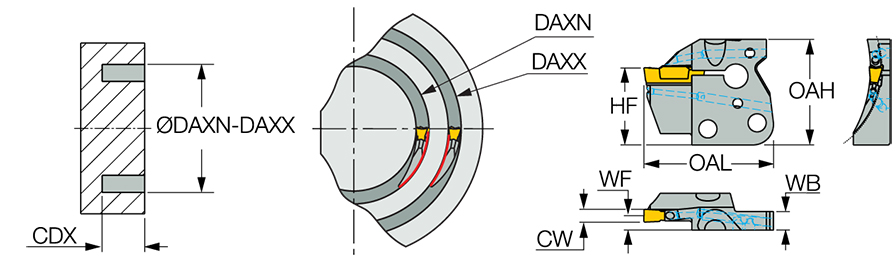

HFPAD 5R-110-T14-JHP
| Cutting Depth Maximum (CDX) | 14 mm | Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | |
| Cutting Width (CW) | 5 mm | Tool Type | Face Turning & grooving Tools |
| Cutting Direction (HAND) | Right Hand | Body Material | Steel |
| Axial Groove Outside Diameter Maximum (DAXX) | 200 mm | Functional Width (WF) | 4.5 mm |
| Axial Groove Outside Diameter Minimum (DAXN) | 110 mm | Measurement Type | Metric |
| Overall Length (OAL) | 45.5 mm |
Product Features
| Family Description | Adapters for face grooving and turning, for 40-3000mm diameter range. Part of the MODULAR-GRIP system. | Country of Origin | Israel |
| Remarks | WF(assembly)=WF(shank) + WF(adapter) HGN,GRIP,DGN inserts can be used only with right-hand adapters, HGPL inserts with left-hand adapters For insert clamping instructions, click on "More Info" |
Shipping Info
Package Weight
0.138
