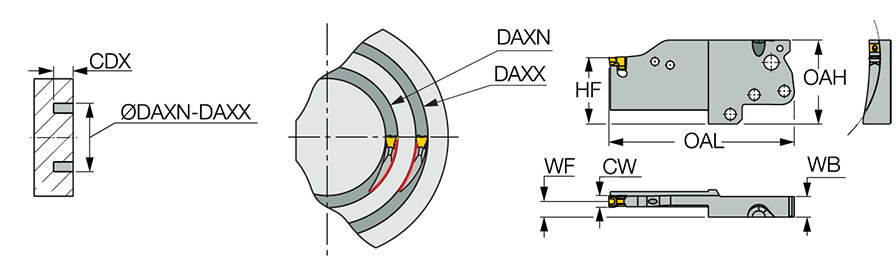

TNFPAD-XL 5L-60T40-JHP
| Cutting Depth Maximum (CDX) | 40 mm | Application | | Face Grooving | Face Grooving Along Shaft | |
| Cutting Width (CW) | 5 mm | Tool Type | Face Turning & grooving Tools |
| Cutting Direction (HAND) | Left Hand | Body Material | Steel |
| Axial Groove Outside Diameter Maximum (DAXX) | 90 mm | Functional Width (WF) | 8 mm |
| Axial Groove Outside Diameter Minimum (DAXN) | 60 mm | Measurement Type | Metric |
| Overall Length (OAL) | 85 mm |
Product Features
| Family Description | Adapters for face grooving, for 35-312 mm diameter range. Part of the MODULAR-GRIP system. | Country of Origin | Israel |
| Remarks | WF(assembly)=WF(shank) + WF(adapter) TNF 4..5..6 inserts can be used with left and right hand adapters. |
Shipping Info
Package Weight
1.324
