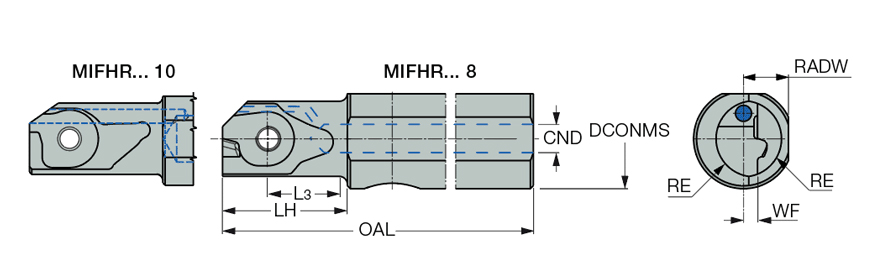

| Overall Length (OAL) | 100 mm | Tool Type | Indexable Turn & Groov Tools |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Body Material | Steel |
| Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Int. Face Grooving | Int. Face Recessing | Int. Groove & Turn | Int. Grooving | Int. Profiling | Int. Undercut & Turning | Threading (Int.) | | Functional Width (WF) | 2.7 mm |
| Head Length (LH) | 19 mm | Measurement Type | Metric |
Product Features

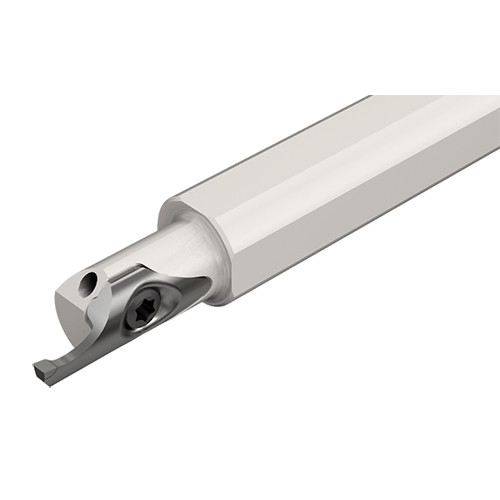

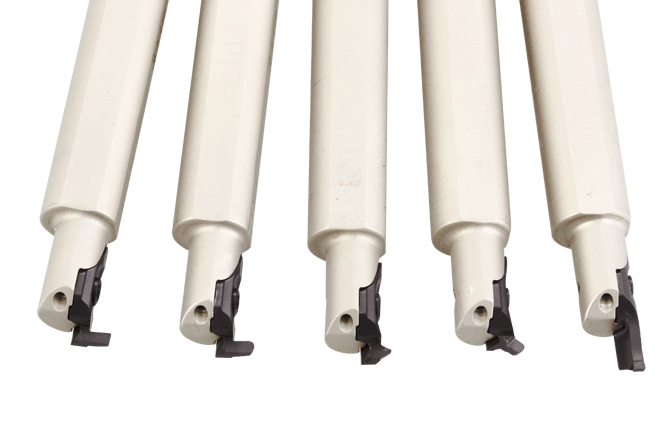

| Family Description | Bars for face and internal grooving undercutting and threading applications. They carry screw clamped MINCUT inserts into a long pocket, providing a very rigid clamping. The tools have coolant holes. | Country of Origin | Israel |
Shipping Info
Package Weight
0.365
