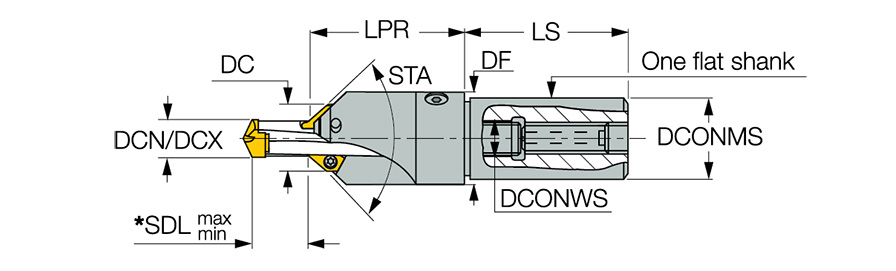

| Cutting Diameter Maximum (DCX) | 18.9 mm | Tool Type | Chamfering drills |
| Cutting Diameter Minimum (DCN) | 18 mm | Measurement Type | Metric |
| Master Insert Identification (MIID) | XCGT 09... | PackSize | 1 |
| Shank Length (LS) | 60 mm | Remarks | For each SDLmin SDLmax pair, click on More Info in order to see which drill they refer to *SDLmin & SDLmax dimensions are based on the 45° chamfering insert It is recommended to apply external coolant on the chamfering inserts. Reduce the recommended feed and speed of the drill being used by 50% when machining maximum chamfer size Chamfering angle (STA) depends on the chamfering insert being used |
| Shank Size (SS) | 32 mm | Connection Diameter Machine Side (DCONMS) | 32 mm |
| shank_type | Whistle Notch | Body Material | Steel |
| Application | | Chamfering | Drilling | |
Product Features

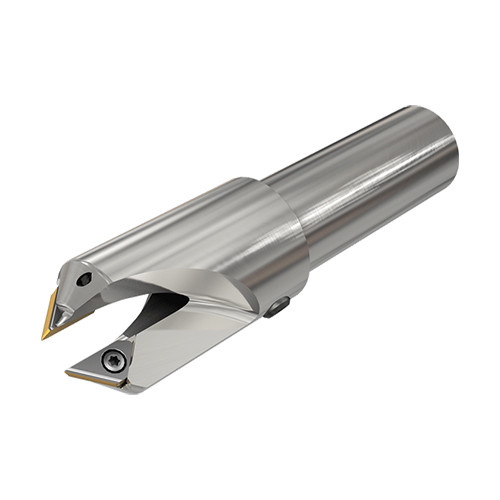

| Family Description | Drill Holders used with UNISUMOCHAM or UNICHAMDRILL drills for drilling and chamfering in one operation | Country of Origin | Israel |
| Remarks | For each SDLmin SDLmax pair, click on More Info in order to see which drill they refer to *SDLmin & SDLmax dimensions are based on the 45° chamfering insert It is recommended to apply external coolant on the chamfering inserts. Reduce the recommended feed and speed of the drill being used by 50% when machining maximum chamfer size Chamfering angle (STA) depends on the chamfering insert being used |
Shipping Info
Package Weight
1.753
Related Documentation

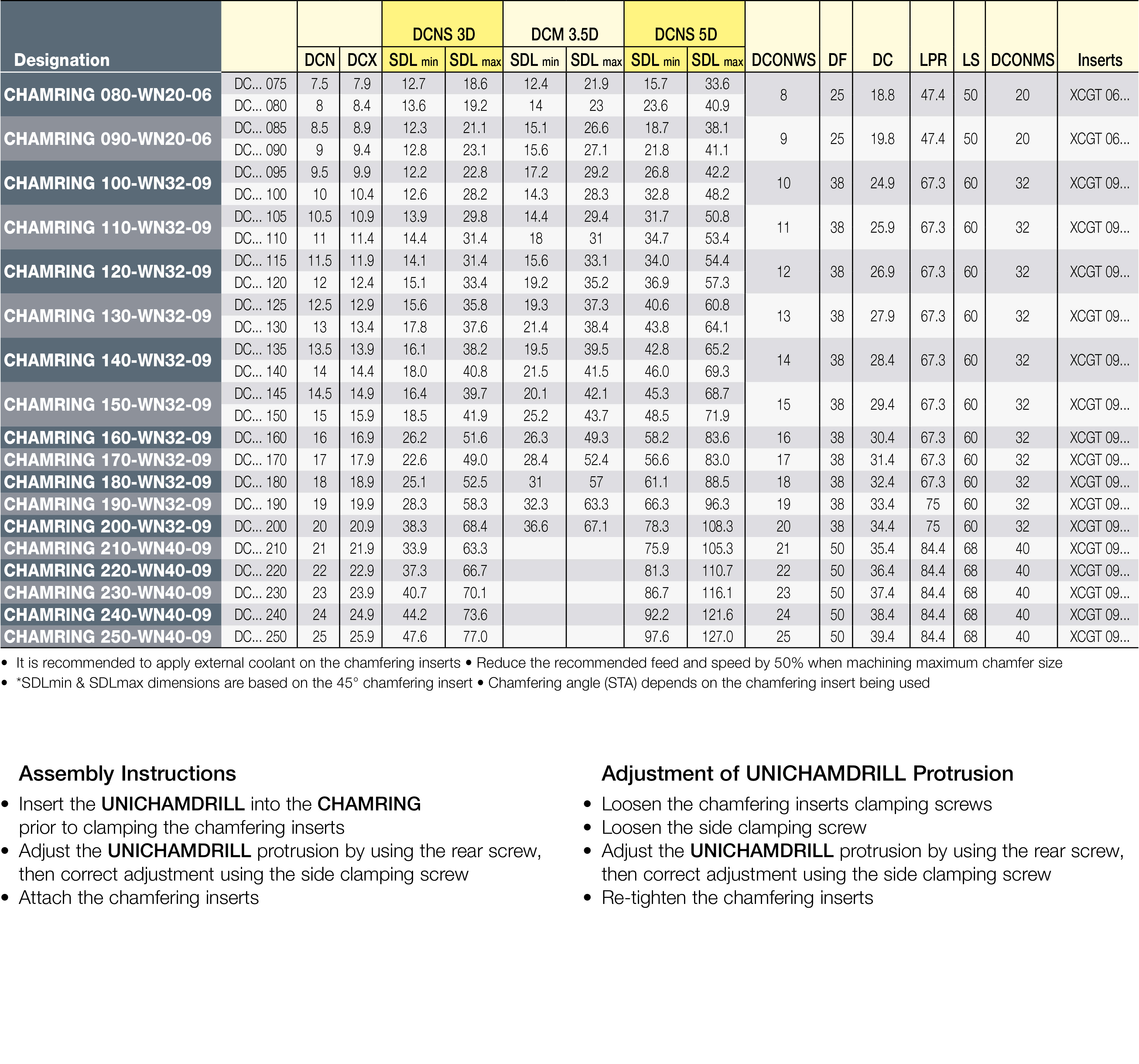

Assembly Instructions Insert the drill into the CHAMRING prior to clamping the chamfering inserts Adjust the drill protrusion by using the rear screw, then correct adjustment using the side clamping screw Attach the chamfering inserts Adjustment of drill Protrusion Loosen the chamfering inserts clamping screws Loosen the side clamping screw Adjust the drill protrusion by using the rear screw, then correct adjustment using the side clamping screw Re-tighten the chamfering inserts
